1016-4PJ-PIX Ribbed Poly V-Belt

Name: 1016-4PJ-PIX Ribbed Poly V-Belt
Brand: PIX
SKU: 1016-4PJ-PIX
Price: 8.35 GBP
Availability: InStock

Backorder

£8.35 inc. VAT

Available to order in. - Please call first if urgent

Out of Stock at SBL Services Swindon

Available to order. Collection times may vary.

Specific timeframe will be provided after ordering.

Product details

SKU 1016-4PJ-PIX

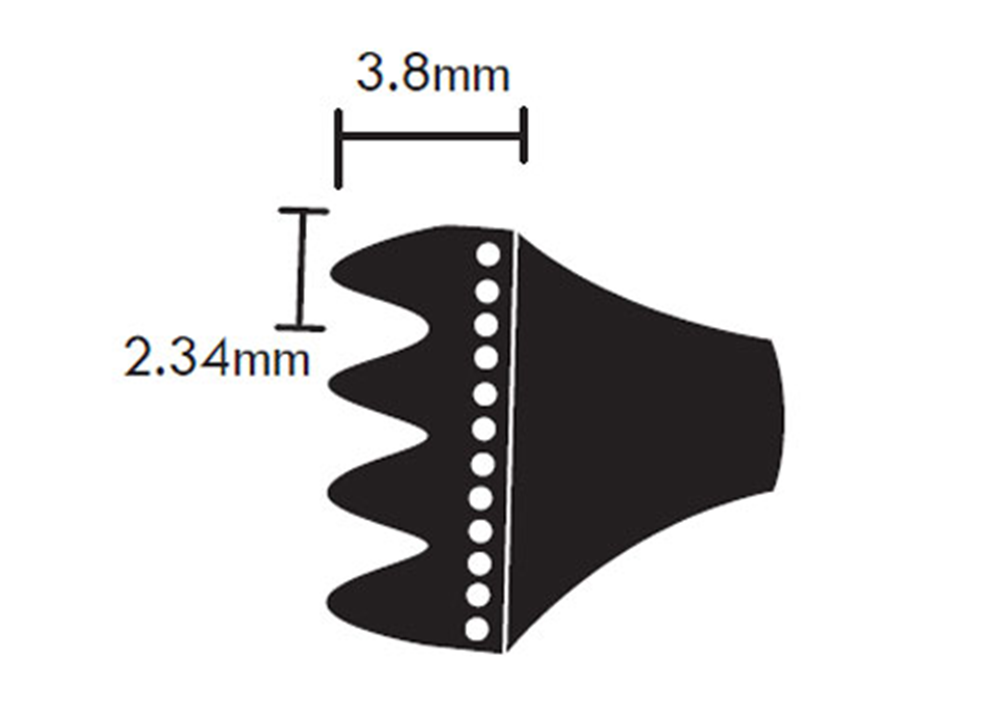

Type PJ Ribbed Section
Width 4 Ribs
Pitch Length (Lp) 1016mm

Product downloads

Datasheet

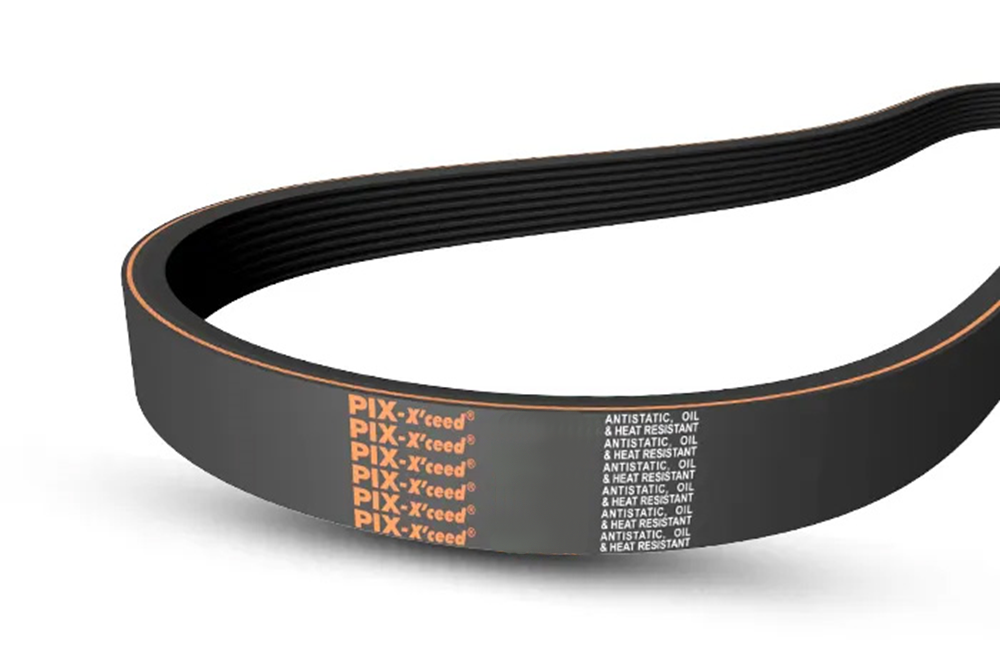

PIX-X’CEED RIBBED / POLY V-BELTS
PIX-X’ceed® Multi Ribbed Belts are an ideal solution for compact drives in household appliances and heavy machinery.
Multi Ribbed Belts combine the high flexibility of flat Belts with a high power transmission capacity of V-Belts. Multi Ribbed Belts enable economic solutions even under difficult drive conditions, such as large transmission ratios, high Belt speeds, small pulley diameters and back idler pulleys.
Multi Ribbed Belts consist of multiple V-grooves. The design allows operation on small pulley diameters.
Multi Ribbed Belts offer high Belt speed. Multi Ribbed Belts are designed for high power transmission ratios and offer high power output. PIX-X’ceed® Multi Ribbed Belts are available in PH, PJ, PK, PL and PM profiles, these Belts are available in the standard version, high temperature, elasticated, topcoat; for packaging machinery, FRAS; which are fire-resistant, anti-static Belts and double-sided multi ribbed belts.

High power transmission capacity.
Suitable for small pulley diameters.
Maximum Belt linear speed up to 60 m/sec.
Highly flexible, noise-free & smooth running.
Can be used for speed ratios up to 1:30.
Anti-static oil & heat resistant.
Temperature range: -25°C to +100°C
Reference standards RMA IP-26, ISO 9982 & DIN 7867.

**Available in 2 to 235 Rib Widths** If you need a different width to those listed, please contact us.
