B9036.0 Hand Taper Pin Reamer
Regular price
£55.19
inc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU B9036.0
- Type Hand Taper Pin Reamer
- Material HSS
- Application Steel and Cast Steel, Cast Iron, and Non-Ferrous Metal

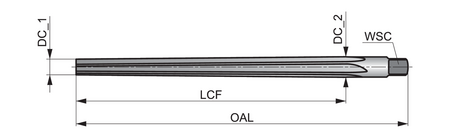

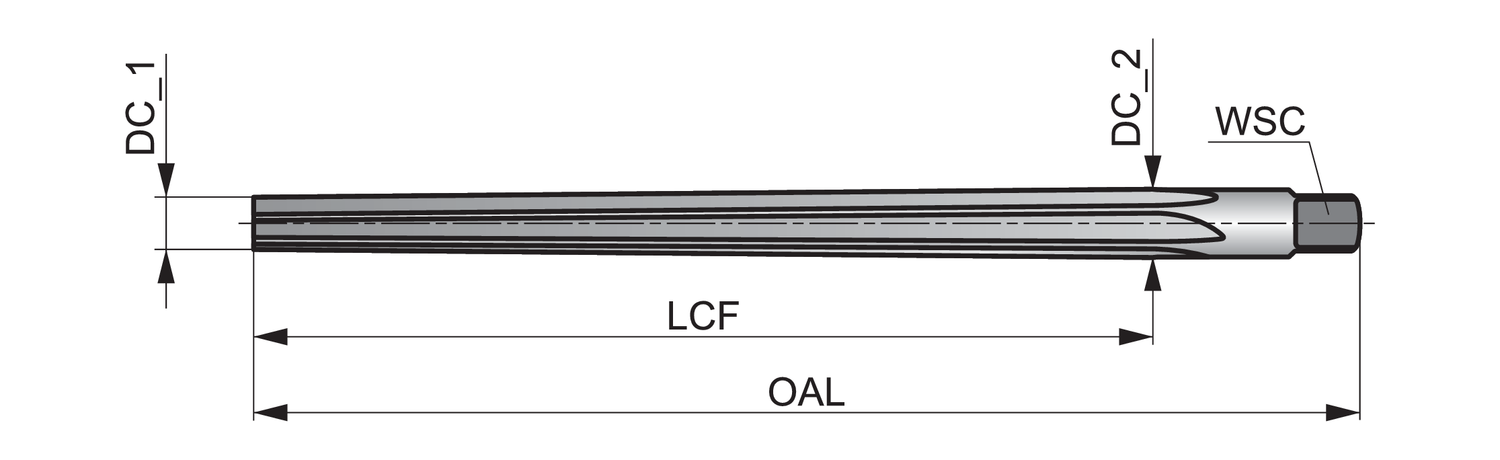

- Cutting Diameter (DC) 7.9mm
- Overall Length (OAL) 135mm
- Length Chip Flute (LCF) 105mm
- Standard DIN 9
- Shank Type Cylindrical shank with Square

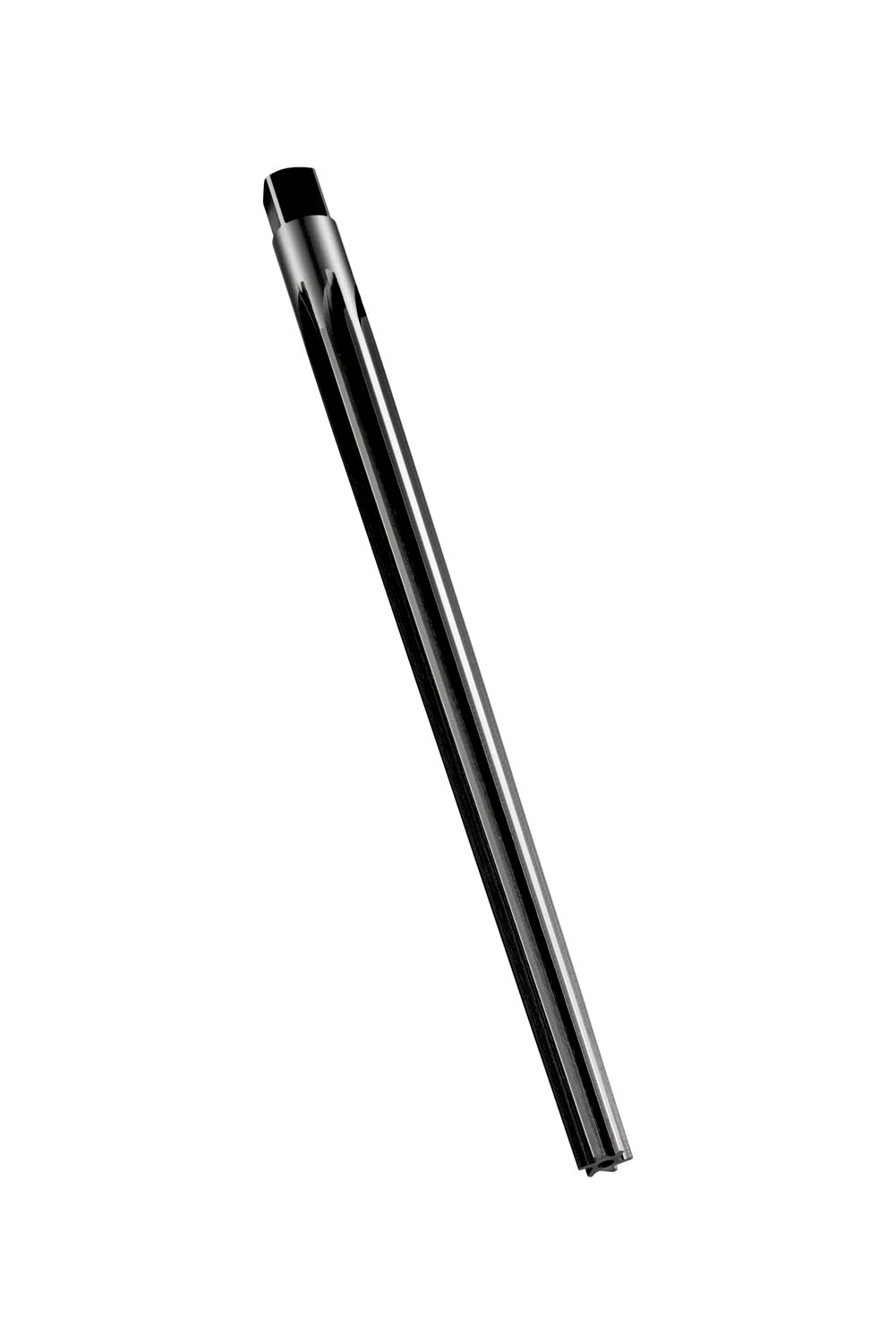

Taper pin hand reamer with straight flutes and a square drive, small end diameter 5.90mm with an overall length of 135mm, a flute length of 105mm and 8.00mm large end diameter, according to DIN 9 standard for reaming pin holes with a 1:50 taper into which 6.00mm taper pins will fit, HSS with bright-steam tempered finish for machining free machining, plain carbon and alloy steel, malleable cast-iron, wrought and cast aluminium and copper or copper alloys
