E001M10 M Machine Tap Spiral Point

Only 2 left
£23.86 inc. VAT

Next Working Day Delivery Available - Order before 3pm Mon-Fri

Next Working Day Delivery Available - Order before 3pm Mon-Fri

Product details

  • SKU E001M10
  • Barcode 7320760567784
  • Type M Machine Tap Spiral Point
  • Material HSS-E-PM
  • Thread Size 10mm
  • Application Steel and Cast Steel
  • Thread Size 10mm
  • Cutting Diameter (DC) 10mm
  • Usable Length (UCF) 34mm
  • Overall Length (OAL) 80mm
  • Standard ISO 529
  • Shank Type Cylindrical shank with Square
Description Shipping Info Collection Info

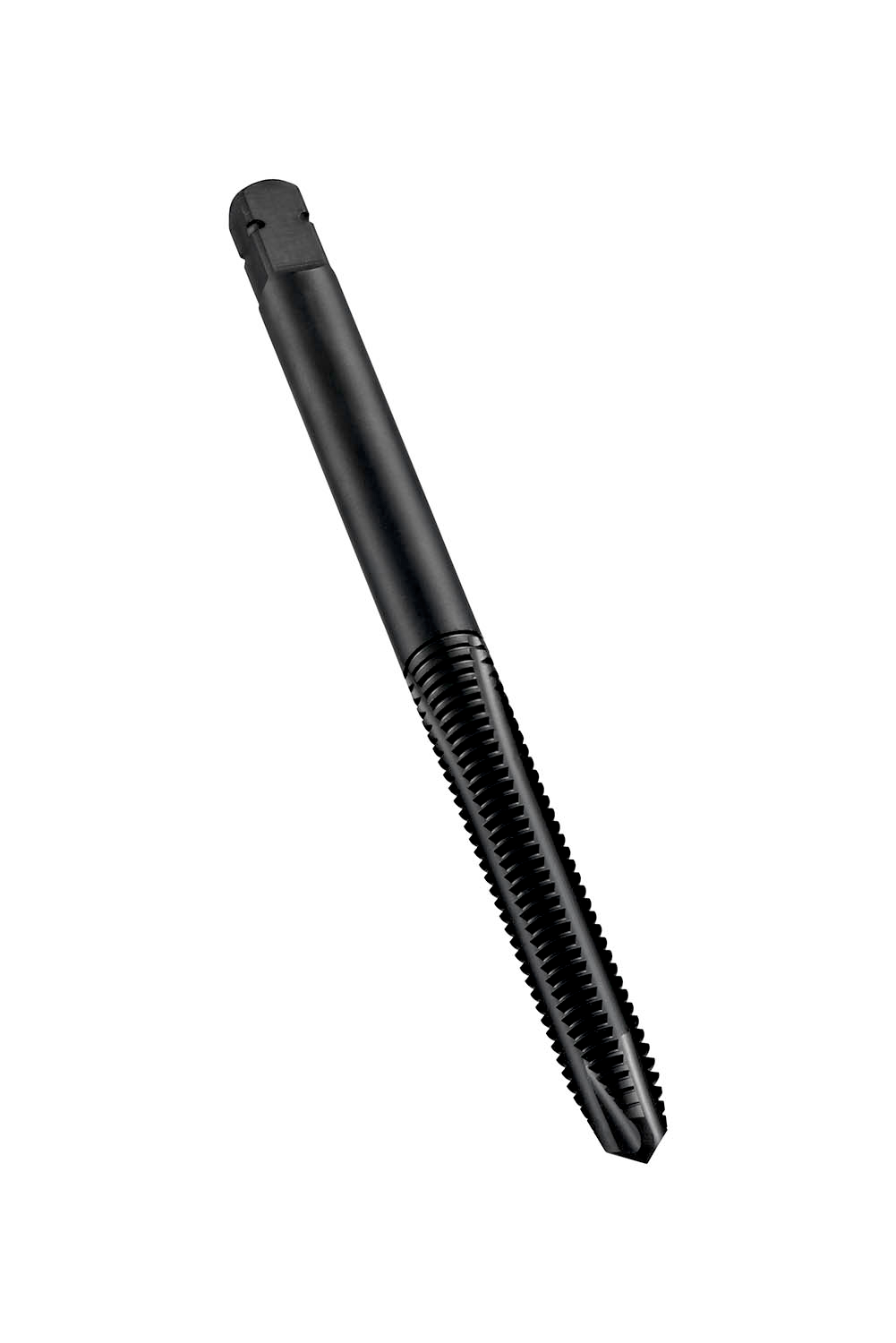

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M10 with 1.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
