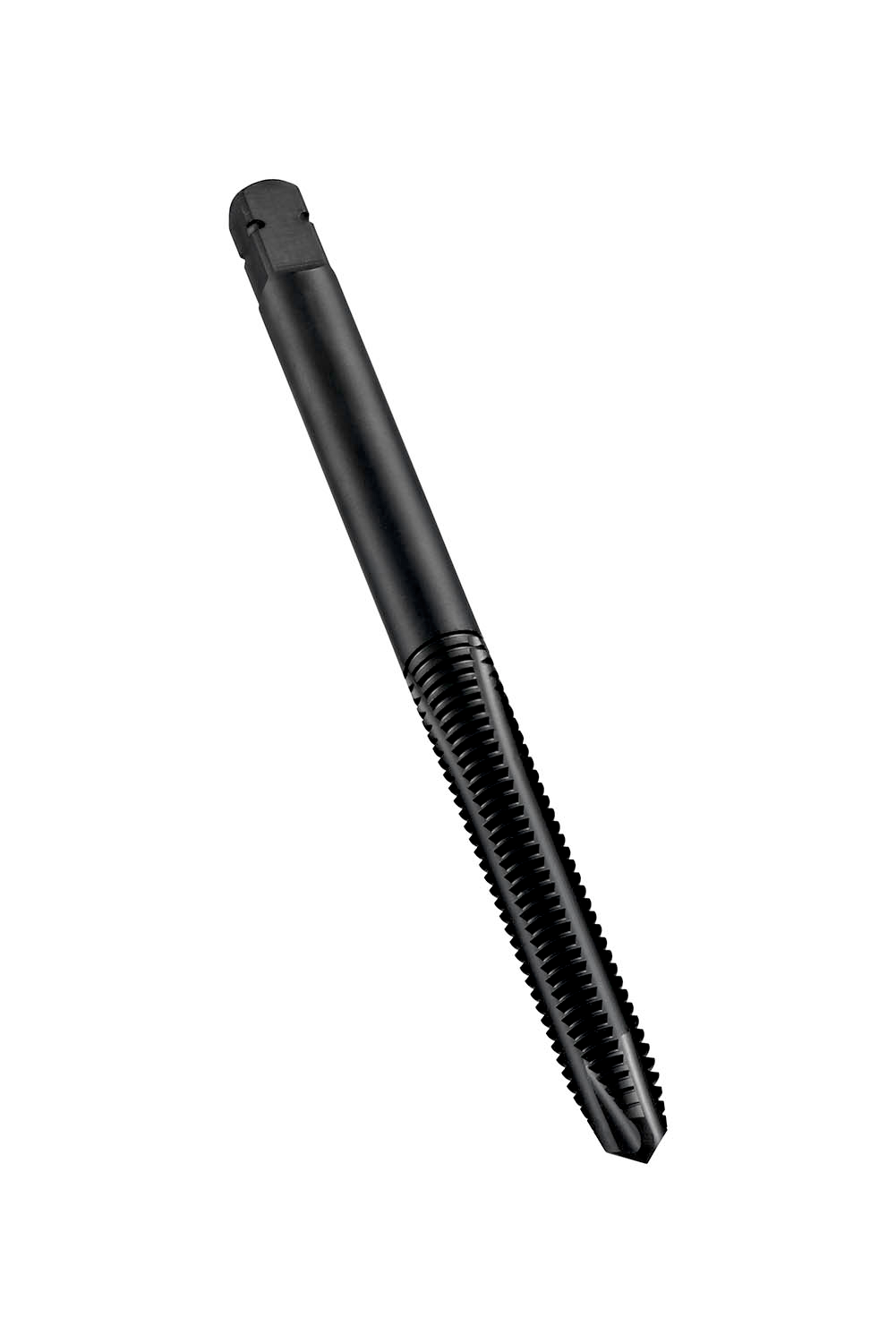

E001M4 M Machine Tap Spiral Point
£17.57 inc. VAT
£14.64 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E001M4
- Type M Machine Tap Spiral Point
- Material HSS-E-PM
- Thread Size 4mm
- Application Steel and Cast Steel

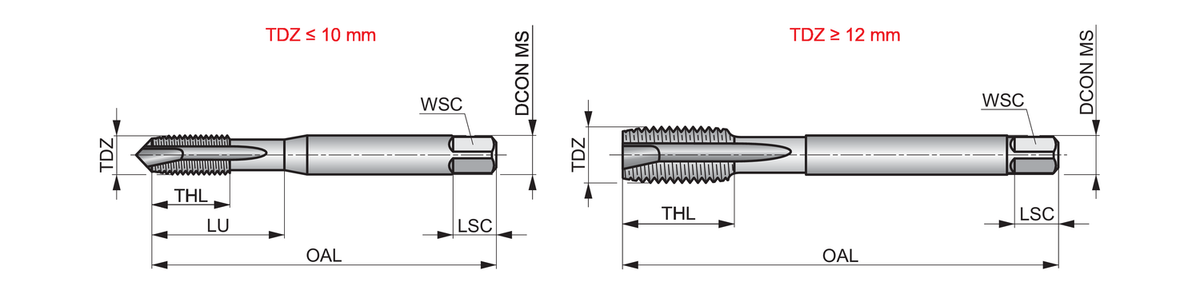

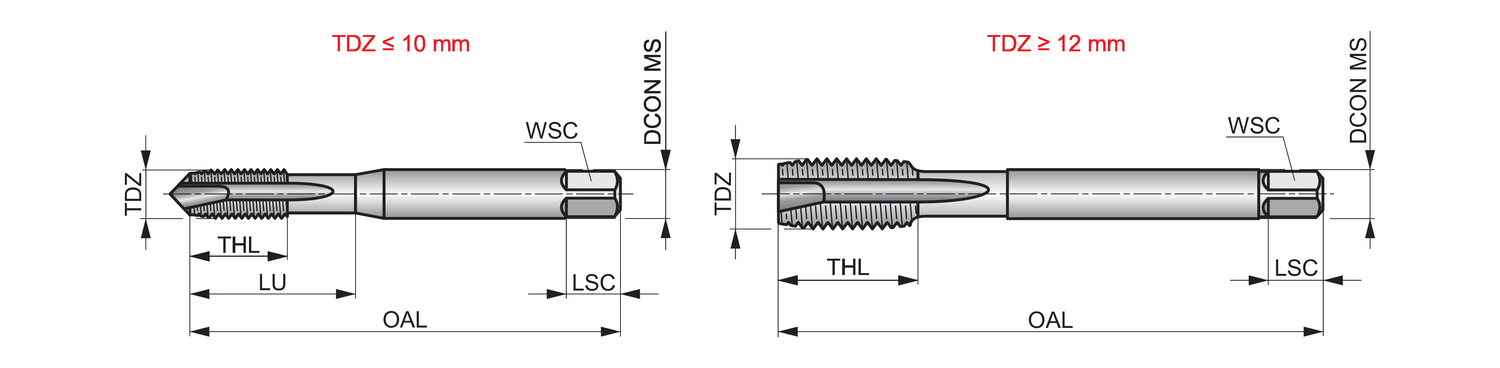

- Cutting Diameter (DC) 4mm
- Usable Length (UCF) 17mm
- Overall Length (OAL) 53mm
- Standard ISO 529
- Shank Type Cylindrical shank with Square
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0mm shank and 3.15mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
