Home » E003M12 M Machine Tap Spiral Flute 45deg
Dormer Pramet

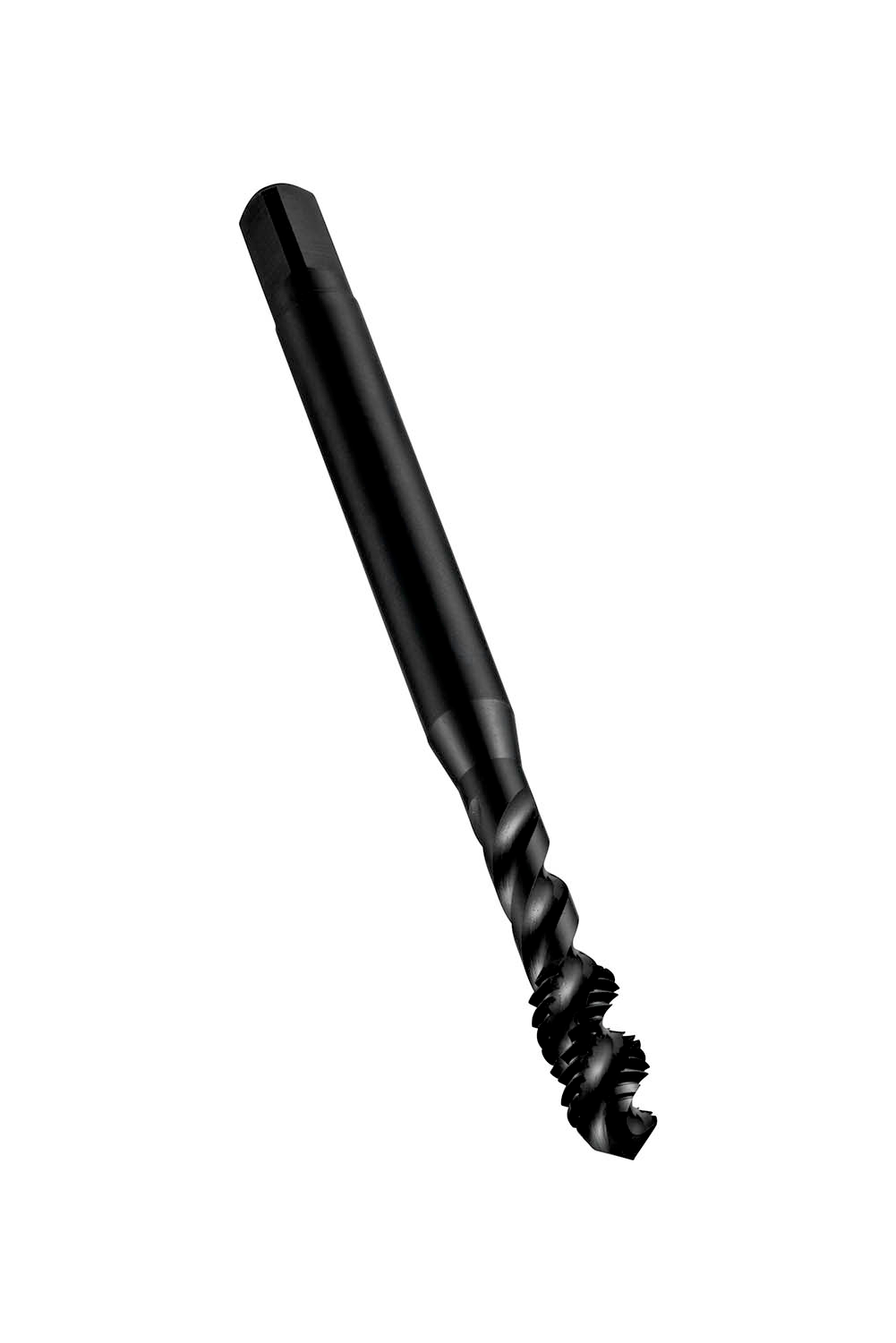

E003M12 M Machine Tap Spiral Flute 45deg

Only 2 left
£33.60 inc. VAT

Next Working Day Delivery Available - Order before 3pm Mon-Fri

Next Working Day Delivery Available - Order before 3pm Mon-Fri

Product details

  • SKU E003M12
  • Barcode 7320760568071
  • Type M Machine Tap Spiral Flute 45°
  • Material HSS-E-PM
  • Thread Size 12mm
  • Application Steel and Cast Steel
  • Thread Size 12mm

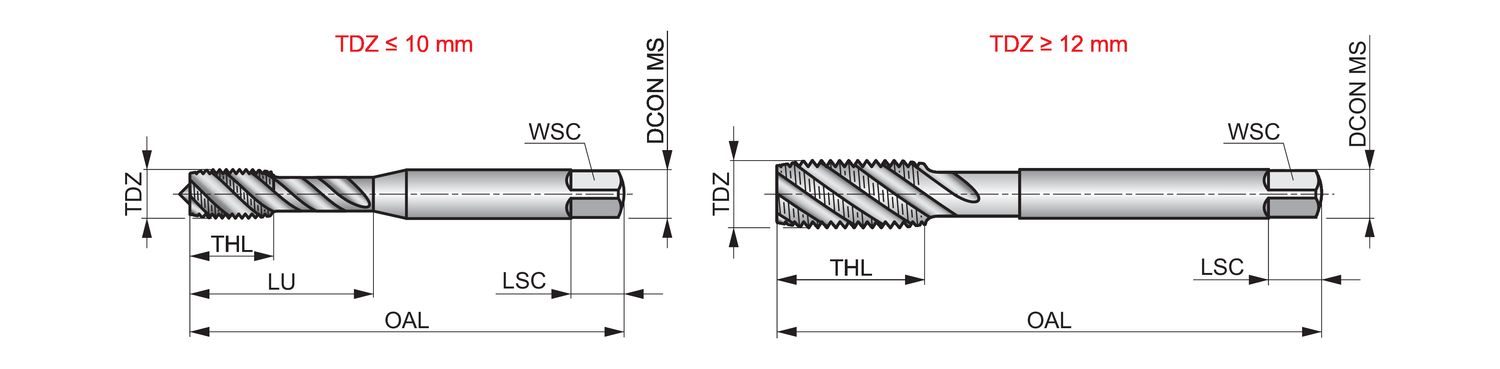

  • Cutting Diameter (DC) 9mm
  • Overall Length (OAL) 89mm
  • Standard ISO 529
  • Shank Type Cylindrical shank with Square
Description Shipping Info Collection Info

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications
