E003M8 M Machine Tap Spiral Flute 45deg
£24.81 inc. VAT
£20.68 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E003M8
- Type M Machine Tap Spiral Flute 45°
- Material HSS-E-PM
- Thread Size 8mm
- Application Steel and Cast Steel

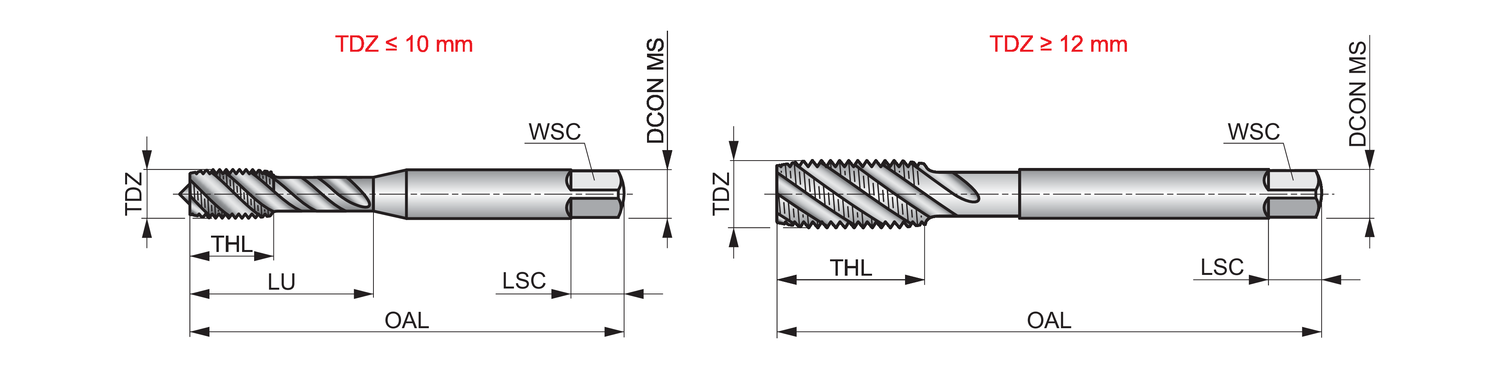

- Cutting Diameter (DC) 8mm
- Usable Length (UCF) 31mm
- Overall Length (OAL) 72mm
- Standard ISO 529
- Shank Type Cylindrical shank with Square
Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications
