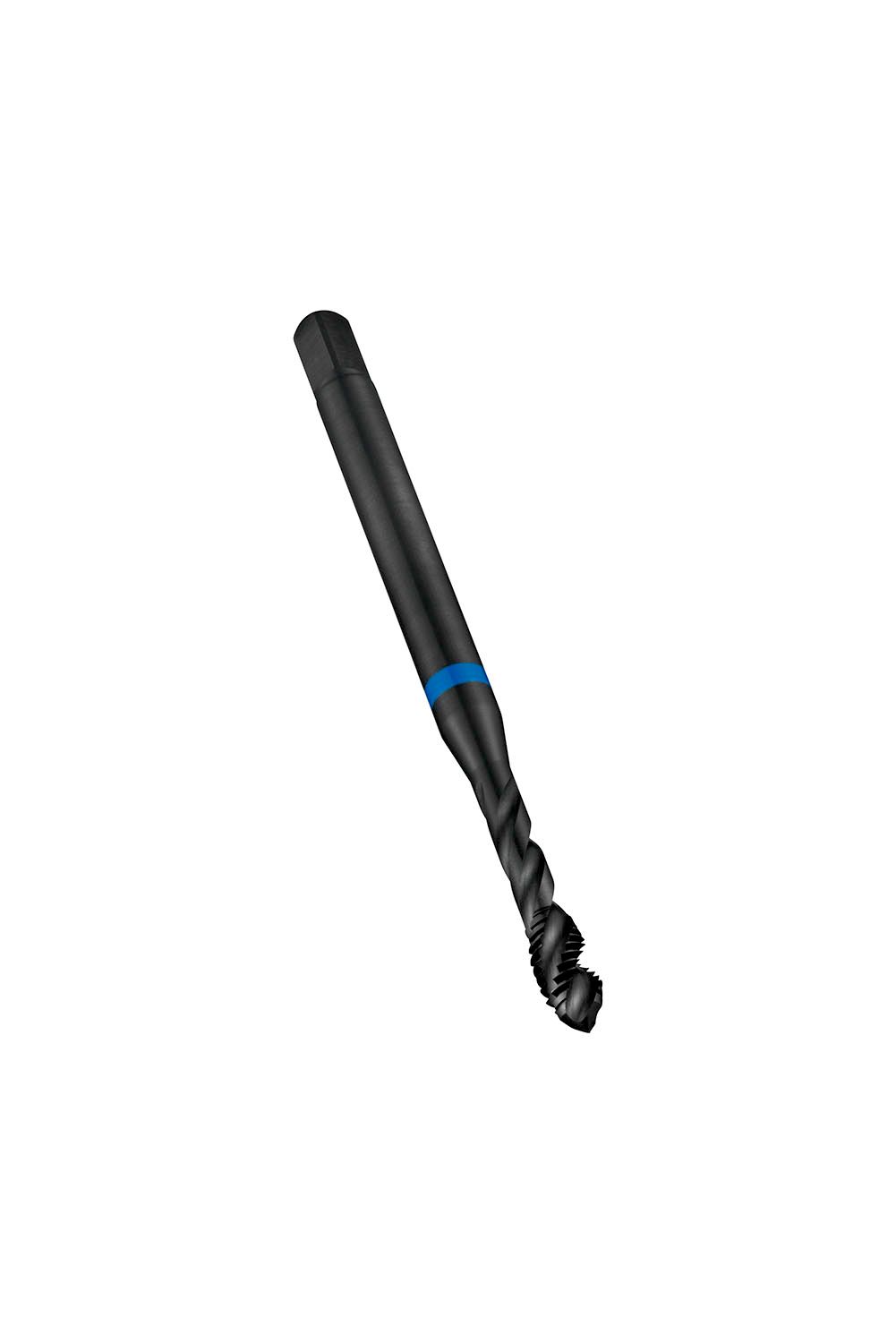

E238M5 M Machine Tap Spiral Flute 40deg Back Tapered Blue Shark

Backorder
Regular price £22.45 inc. VAT

Available to order in. - Please call first if urgent

Out of Stock at SBL Services Swindon

Available to order. Collection times may vary.

Specific timeframe will be provided after ordering.

Product details

  • SKU E238M5
  • Barcode 7320760664148
  • Type M Machine Tap Spiral Flute 40°, Back Tapered, Blue Shark
  • Material HSS-E-PM
  • Thread Size 5mm
  • Application Stainless Steel
  • Thread Size 5mm

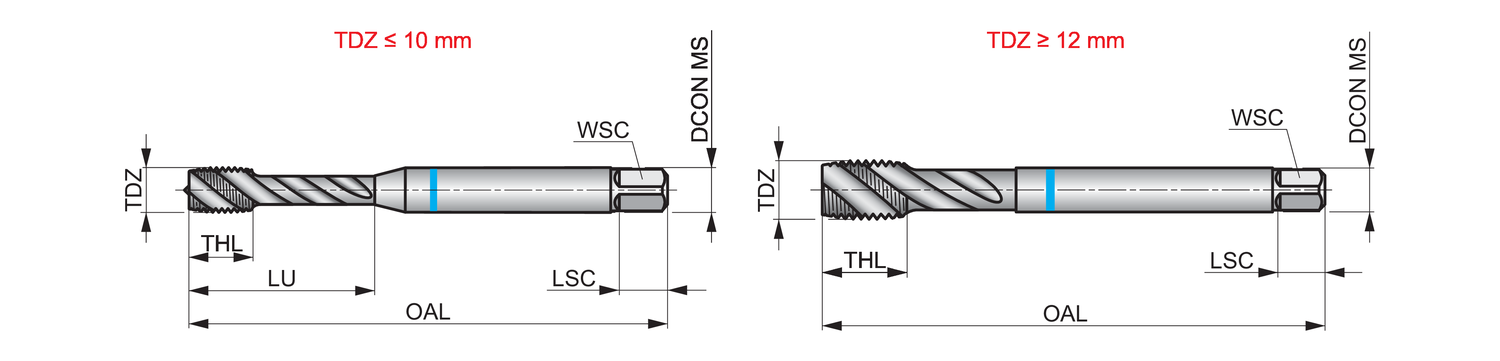

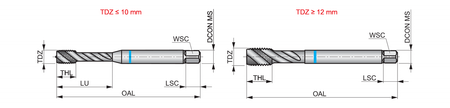

  • Cutting Diameter (DC) 6mm
  • Usable Length (UCF) 25mm
  • Overall Length (OAL) 70mm
  • Standard DIN 371
  • Shank Type Cylindrical shank with Square

Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2.5xD blind hole threading in stainless steel
