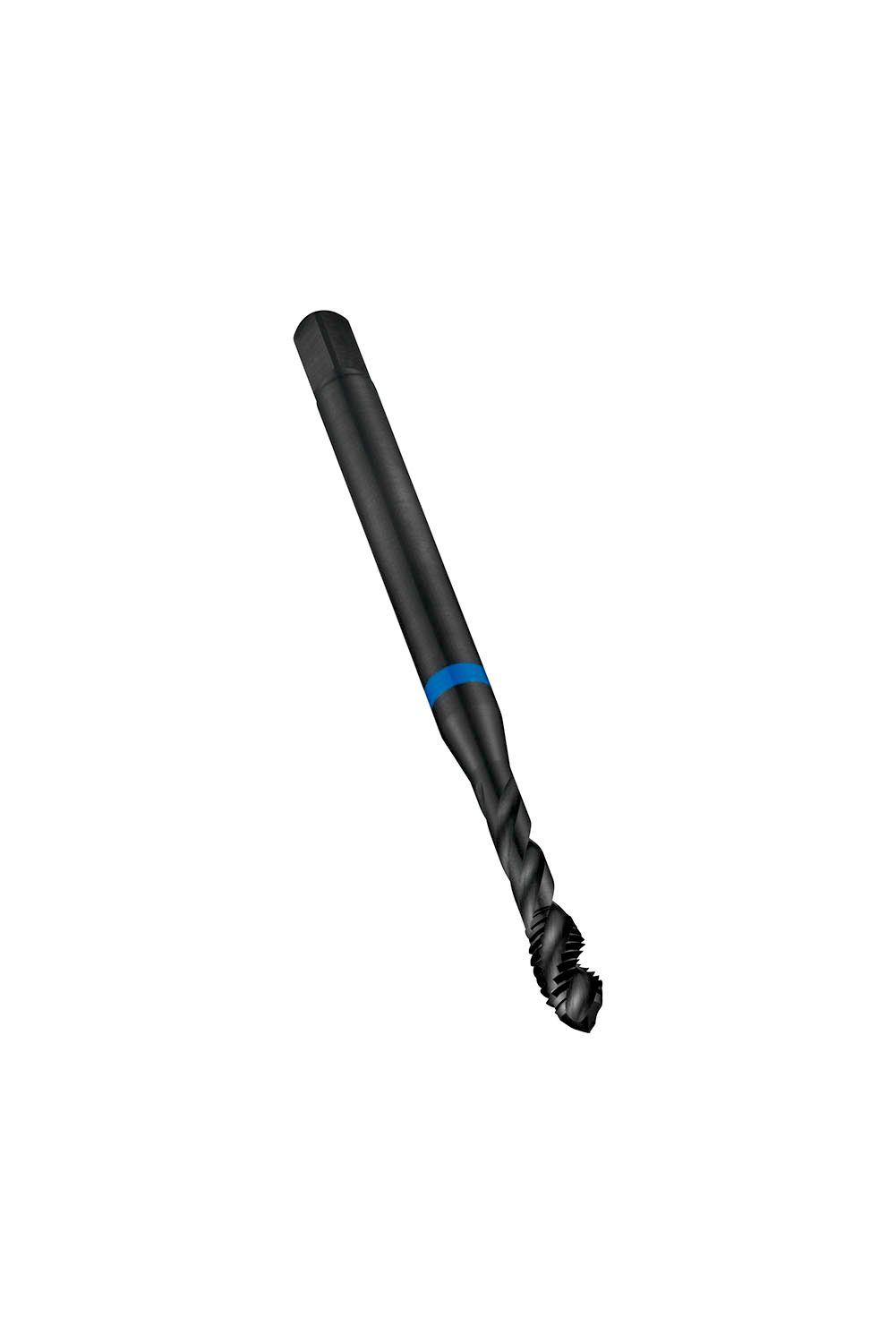

E3821/8 G(BSP) Machine Tap Spiral Flute 40deg Blue Shark
Regular price
£35.22
inc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E3821/8
- Type G(BSP) Machine Tap Spiral Flute 40°, Blue Shark
- Material HSS-E-PM
- Thread Size 1/8"
- Application Stainless Steel
- Thread Size 1/8"

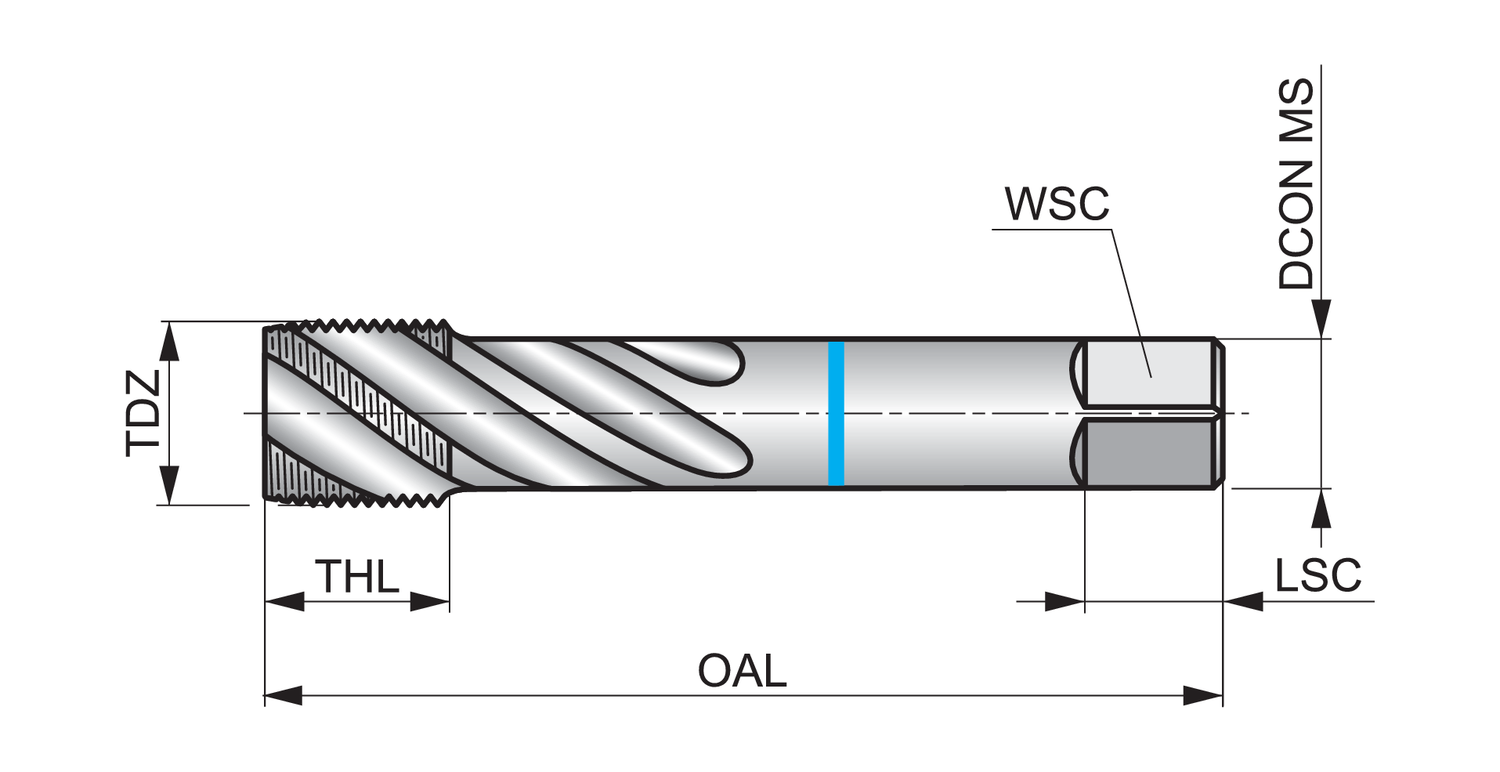

- Cutting Diameter (DC) 7mm
- Overall Length (OAL) 90mm
- Standard DIN 5156
- Shank Type Cylindrical shank with Square
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for British Standard Pipe thread G 1/8" with 28 TPI and Normal class of fit, dimensions according to DIN 5156 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 40° helix angle for 2xD blind hole threading in stainless steel
