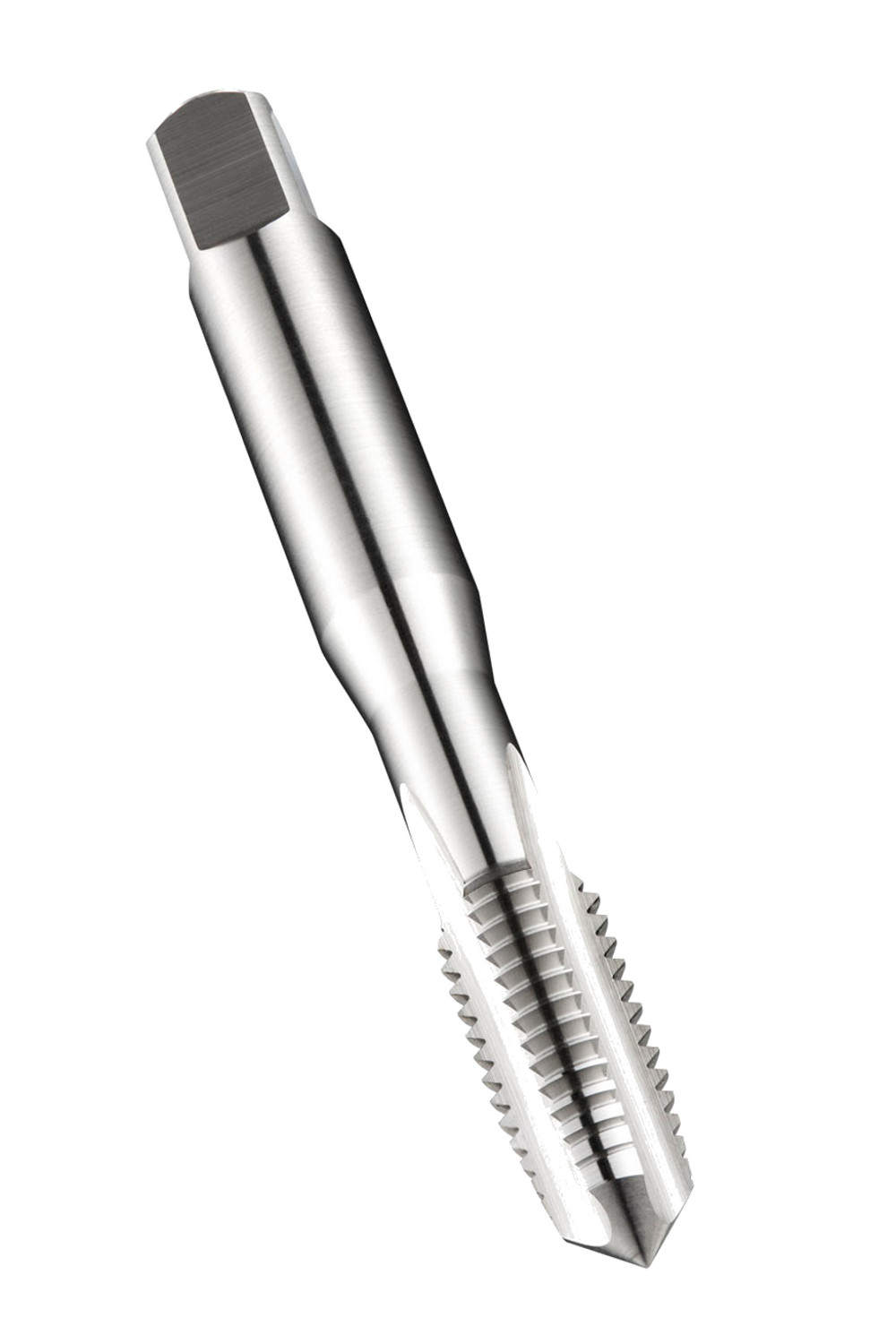

E500M3NO2 Straight Flute Hand Taps Metric ISO Standard
£10.18 inc. VAT
£8.48 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E500M3NO2
- Type Straight Flute Hand Taps
- Material HSS
- Thread Size 3mm
- Application Steel and Cast Steel
- Thread Size 3mm
- Usable Length (UCF) 12.5mm
- Overall Length (OAL) 48mm
- Standard ISO 529
- Shank Type Cylindrical shank with Square

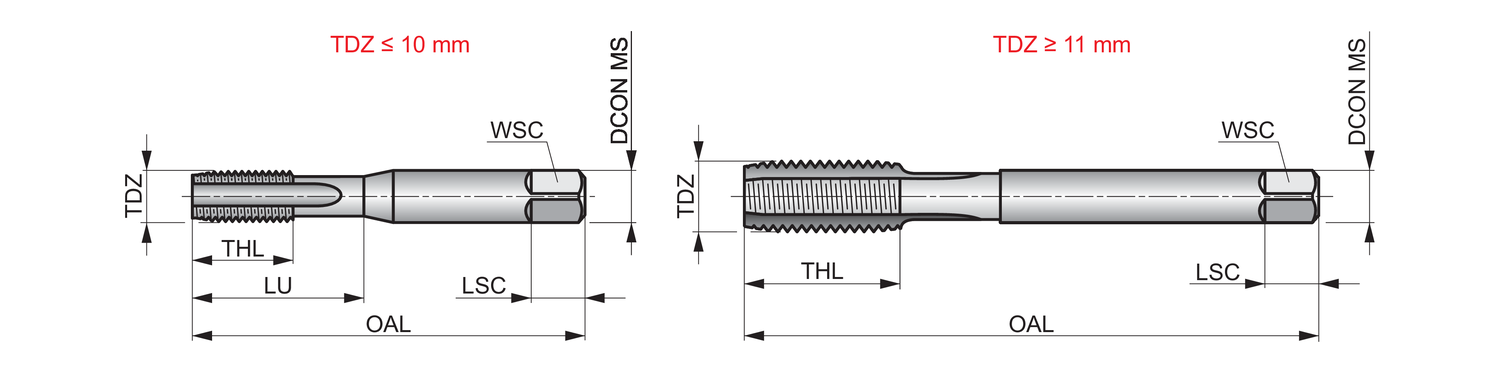

Straight flute hand tap NO2 with a 4-6xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
