E500M3NO6 Straight Flute Hand Taps Metric ISO Standard
Regular price
£30.61
inc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E500M3NO6
- Type Straight Flute Hand Taps
- Material HSS
- Thread Size 3mm
- Application Steel and Cast Steel
- Thread Size 3mm

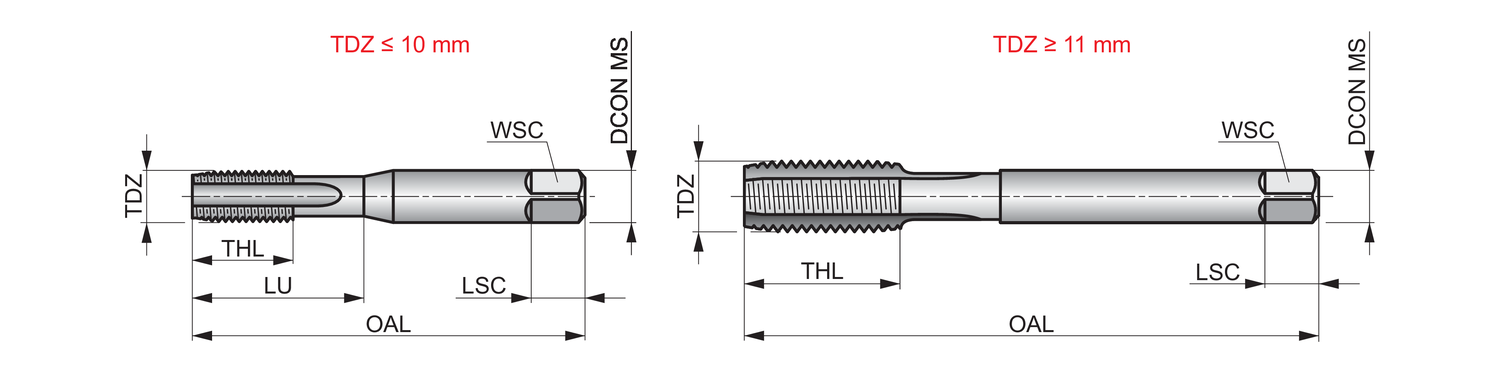

- Usable Length (UCF) 12.5mm
- Overall Length (OAL) 48mm
- Standard ISO 529
- Shank Type Cylindrical shank with Square

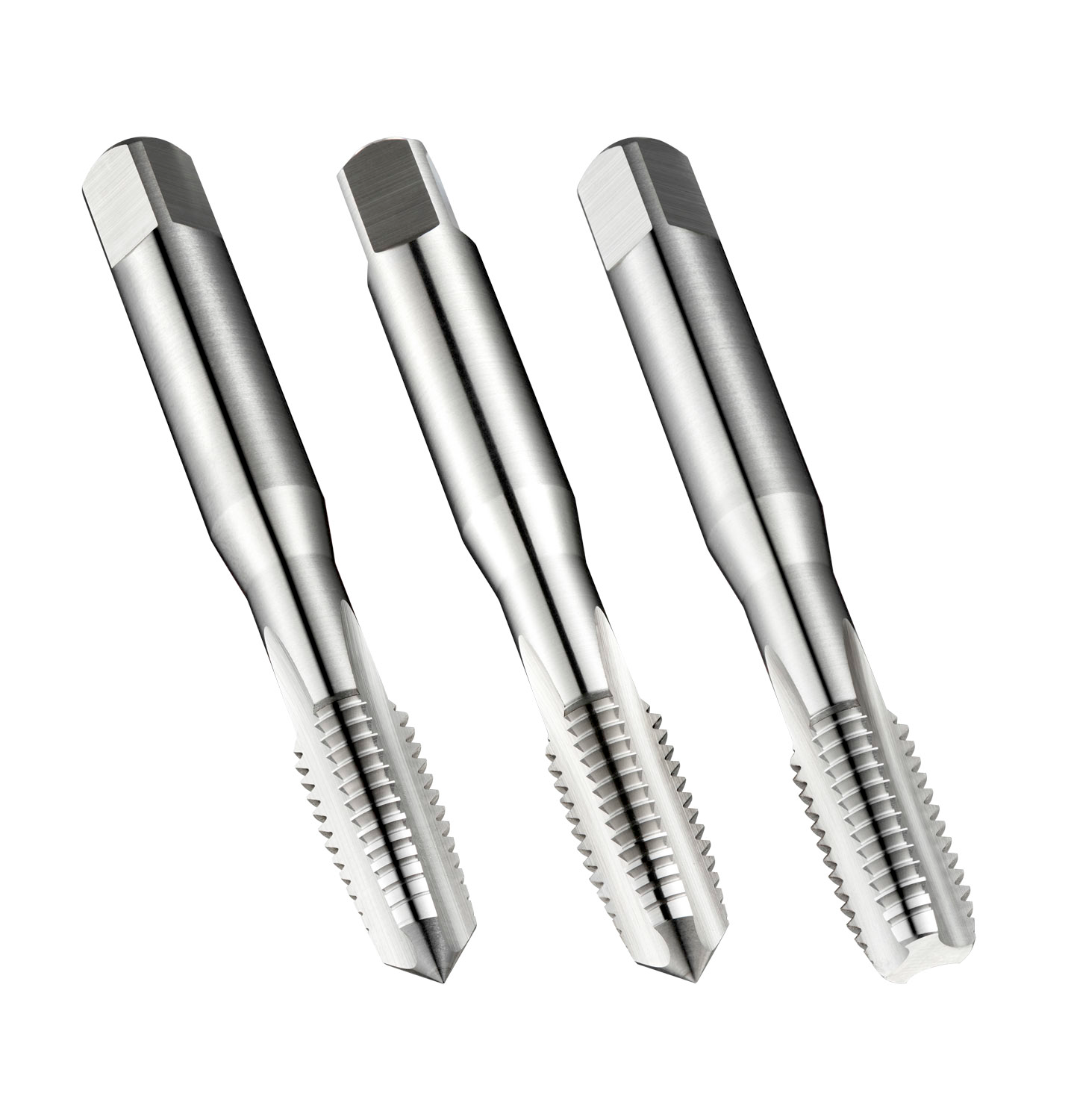

Set of straight flute hand taps NO6 for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, consisting of 1 tap with a 6-8xP taper lead, 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
