E500M4NO1 Straight Flute Hand Taps Metric ISO Standard

Backorder
Regular price £9.00 inc. VAT

Available to order in. - Please call first if urgent

Out of Stock at SBL Services Swindon

Available to order. Collection times may vary.

Specific timeframe will be provided after ordering.

Product details

  • SKU E500M4NO1
  • Barcode 7320760154786
  • Type Straight Flute Hand Taps
  • Material HSS
  • Thread Size 4mm
  • Application Steel and Cast Steel
  • Thread Size 4mm

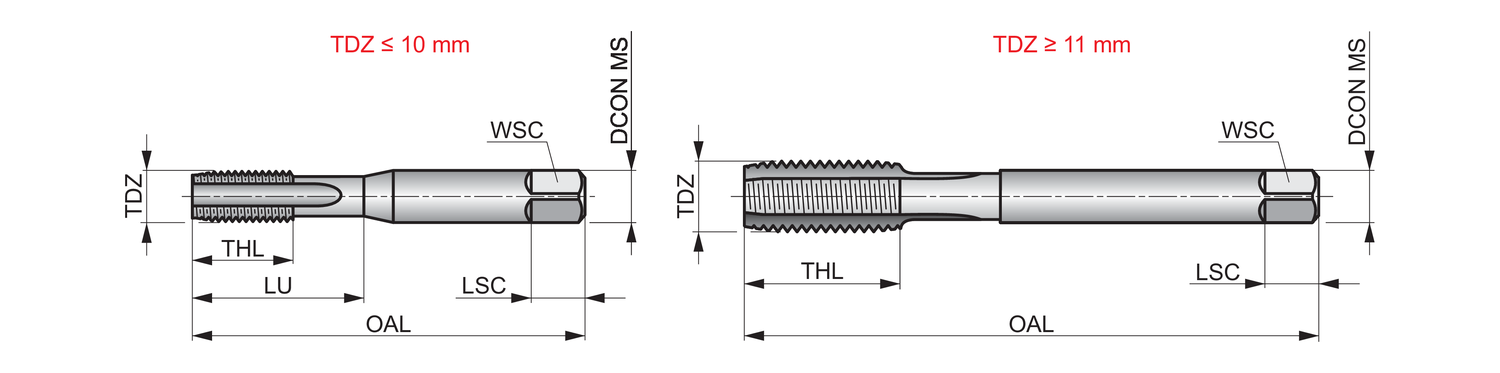

  • Usable Length (UCF) 14mm
  • Overall Length (OAL) 53mm
  • Standard ISO 529
  • Shank Type Cylindrical shank with Square

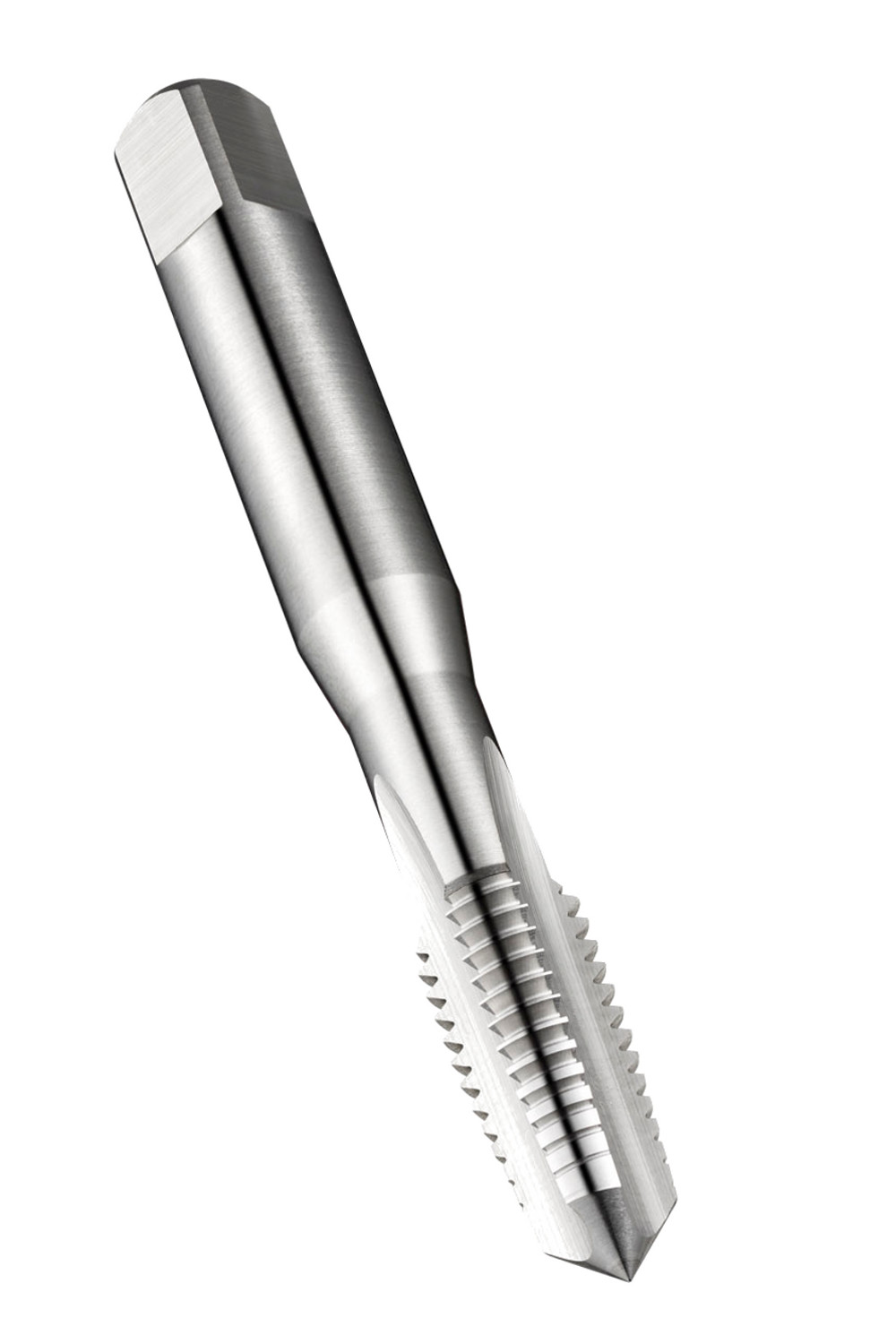

Straight flute hand tap NO1 with a 6-8xP taper lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 4.0mm shank and 3.15mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
