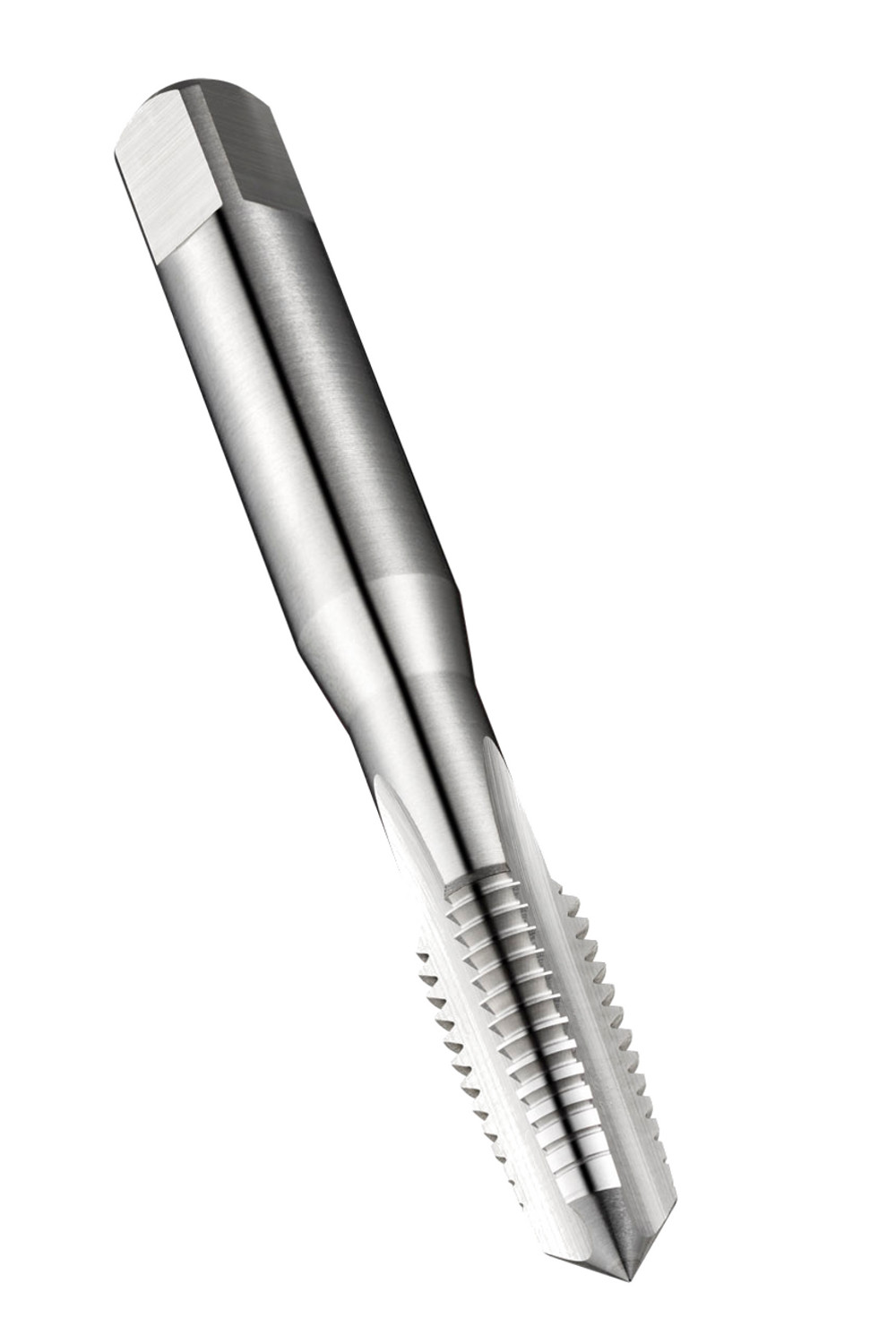

E5313/4NO2 HSS Straight Flute Hand Tap BSW ISO Standard
Regular price
£42.02
inc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E5313/4NO2
- Type HSS Straight Flute Hand Tap, BSW, ISO Standard
- Material HSS
- Thread Size 3/4"
- Application Steel and Cast Steel and Non-Ferrous Metal
- Thread Size 3/4"

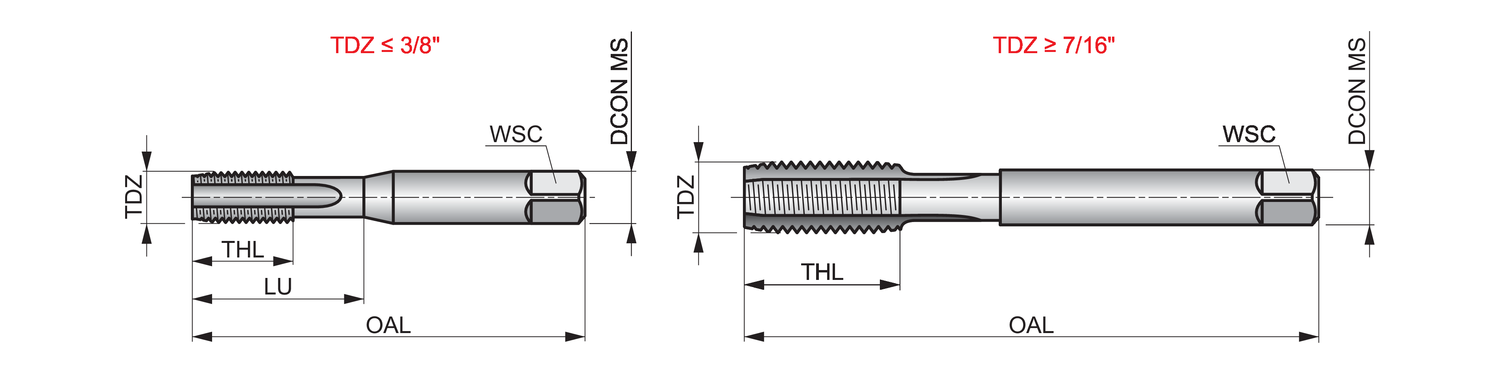

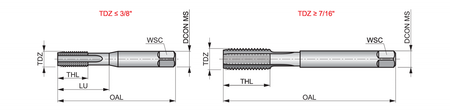

- Cutting Diameter (DC) 14mm
- Overall Length (OAL) 112mm
- Standard ISO 529
- Shank Type Cylindrical shank with Square
Straight flute hand tap NO2 with a 4-6xP second lead, for British Standard Whitworth thread BSW 3/4" with 10 TPI and Medium class of fit, dimensions according to ISO 529 standard with 14.0mm shank and 11.2mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel and copper or copper alloys
