E5473/4NO7 HSS Straight Flute Hand Tap G(BSP) ISO Standard
£148.14 inc. VAT
£123.45 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU E5473/4NO7
- Type HSS Straight Flute Hand Tap G(BSP), ISO Standard
- Material HSS
- Thread Size 3/4"
- Application Steel and Cast Steel

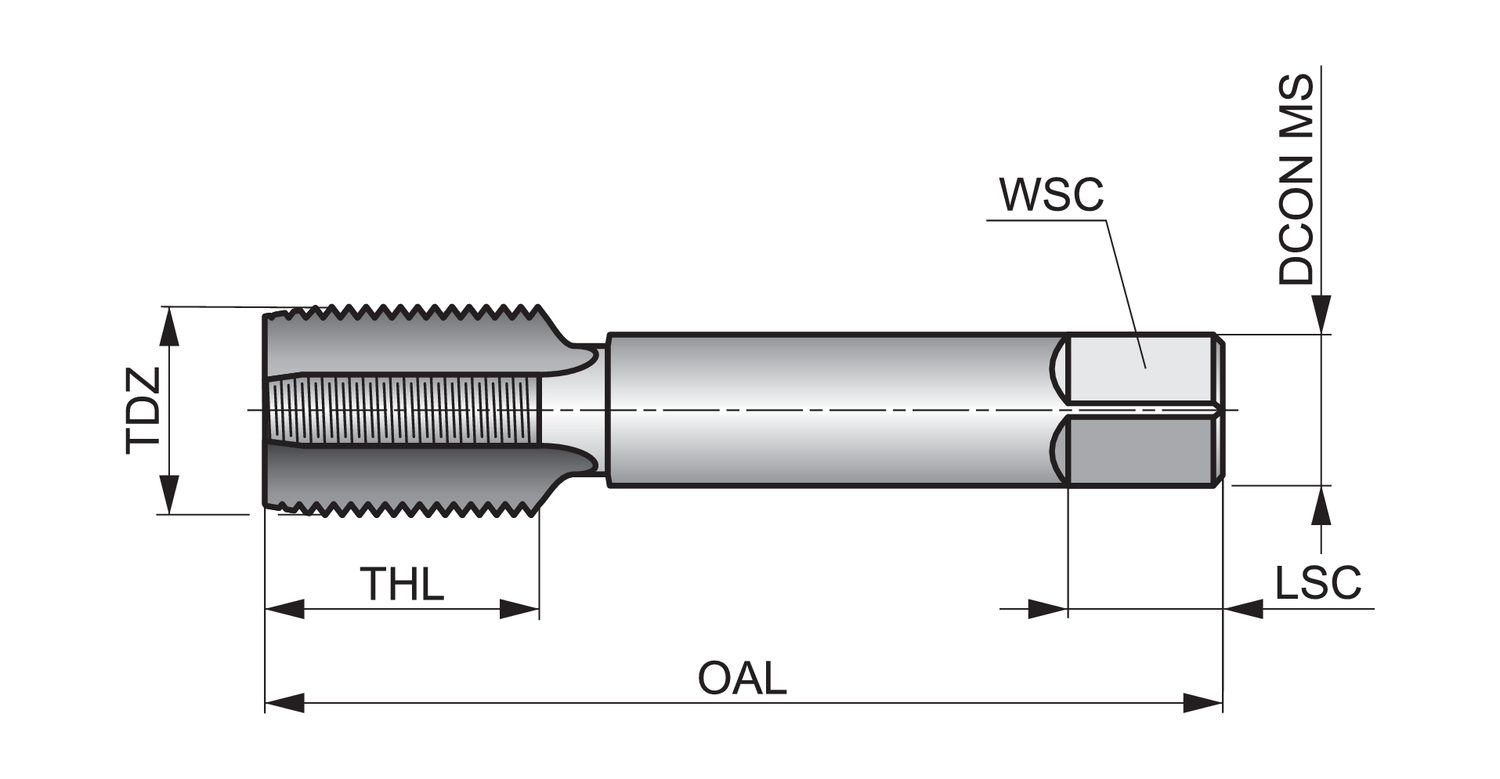

- Cutting Diameter (DC) 20mm
- Overall Length (OAL) 96mm
- Standard ISO 2284
- Shank Type Cylindrical shank with Square

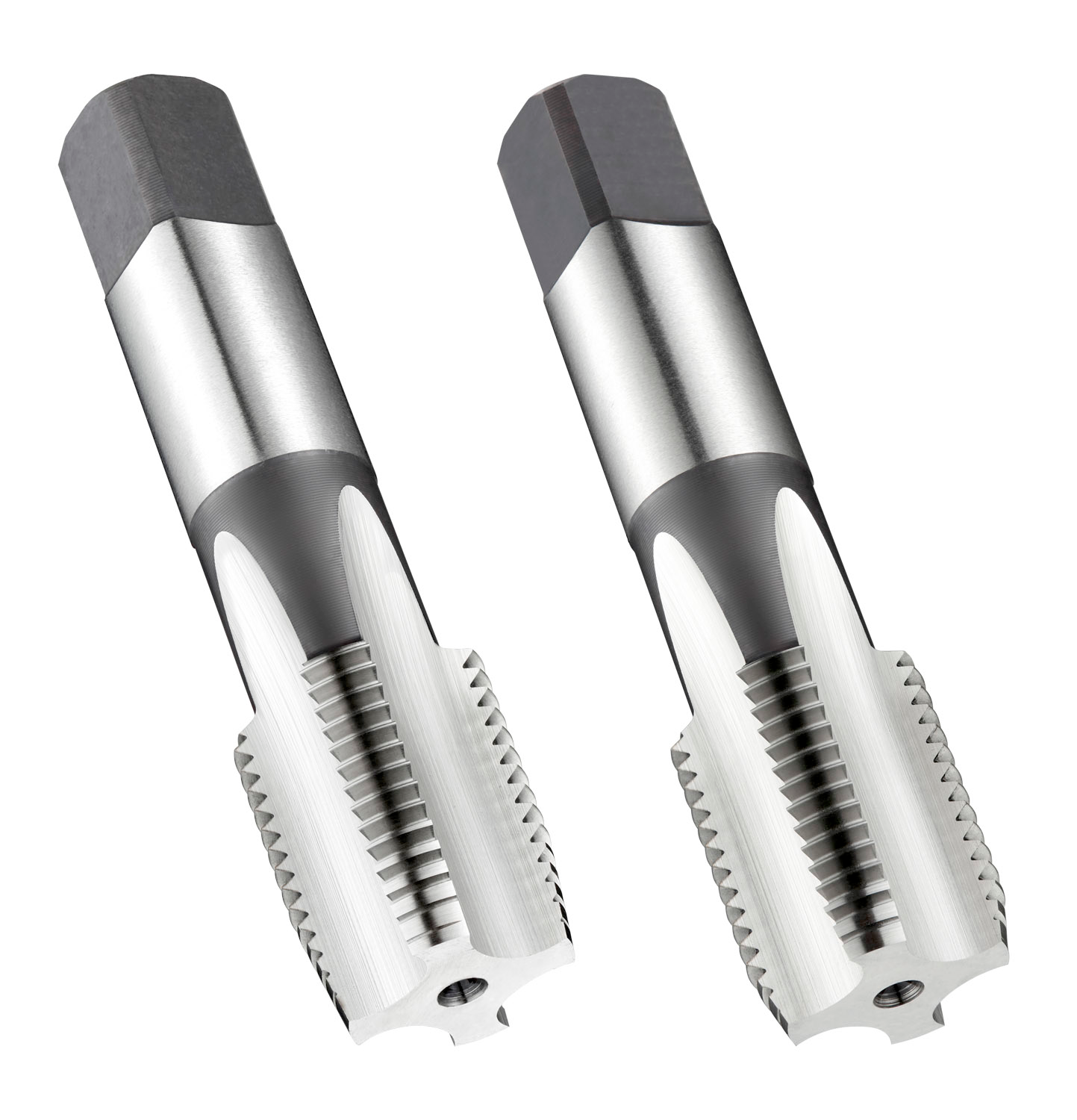

Set of straight flute hand taps NO7 for British Standard Pipe thread G 3/4" with 14 TPI and Normal class of fit, consisting of 1 tap with a 4-6xP second lead and 1 tap with a 2-3xP plug lead, dimensions according to ISO 2284 standard with 20.0mm shank and 16.0mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel
