E5501/2 HSS Straight Flute Serial Hand Tap Rc(BSPT) ISO Standard

Backorder
Regular price £76.26 inc. VAT

Available to order in. - Please call first if urgent

Out of Stock at SBL Services Swindon

Available to order. Collection times may vary.

Specific timeframe will be provided after ordering.

Product details

  • SKU E5501/2
  • Barcode 7320760099476
  • Type HSS Straight Flute Serial Hand Tap, Rc(BSPT), ISO Standard
  • Material HSS
  • Thread Size 1/2"
  • Application Steel and Cast Steel and Non-Ferrous Metal
  • Thread Size 1/2"

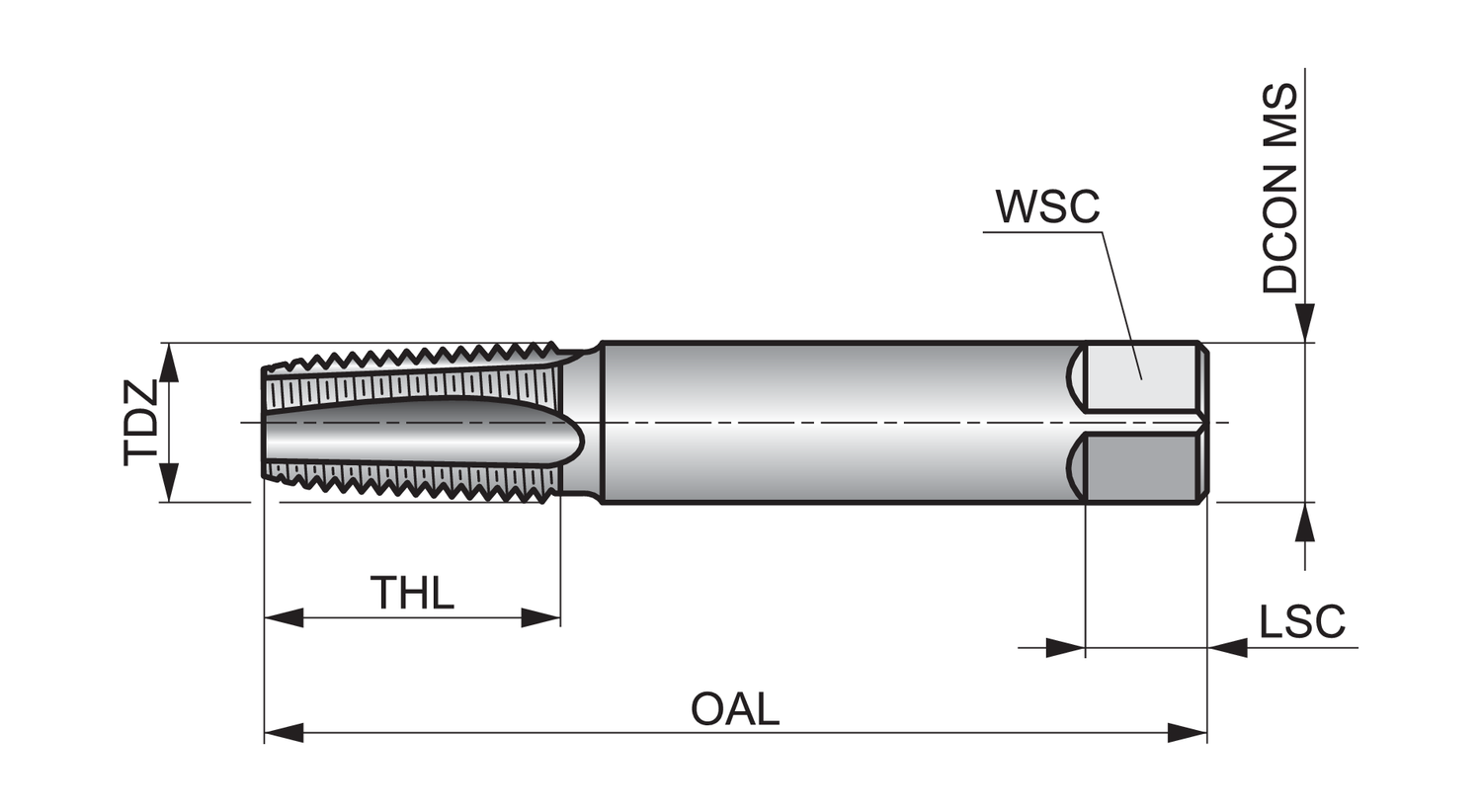

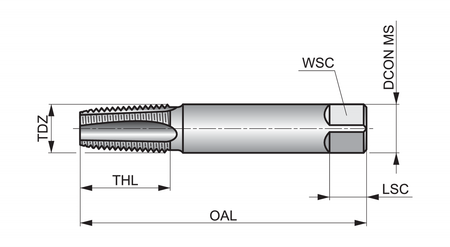

  • Cutting Diameter (DC) 16mm
  • Overall Length (OAL) 87mm
  • Standard ISO 2284
  • Shank Type Cylindrical shank with Square

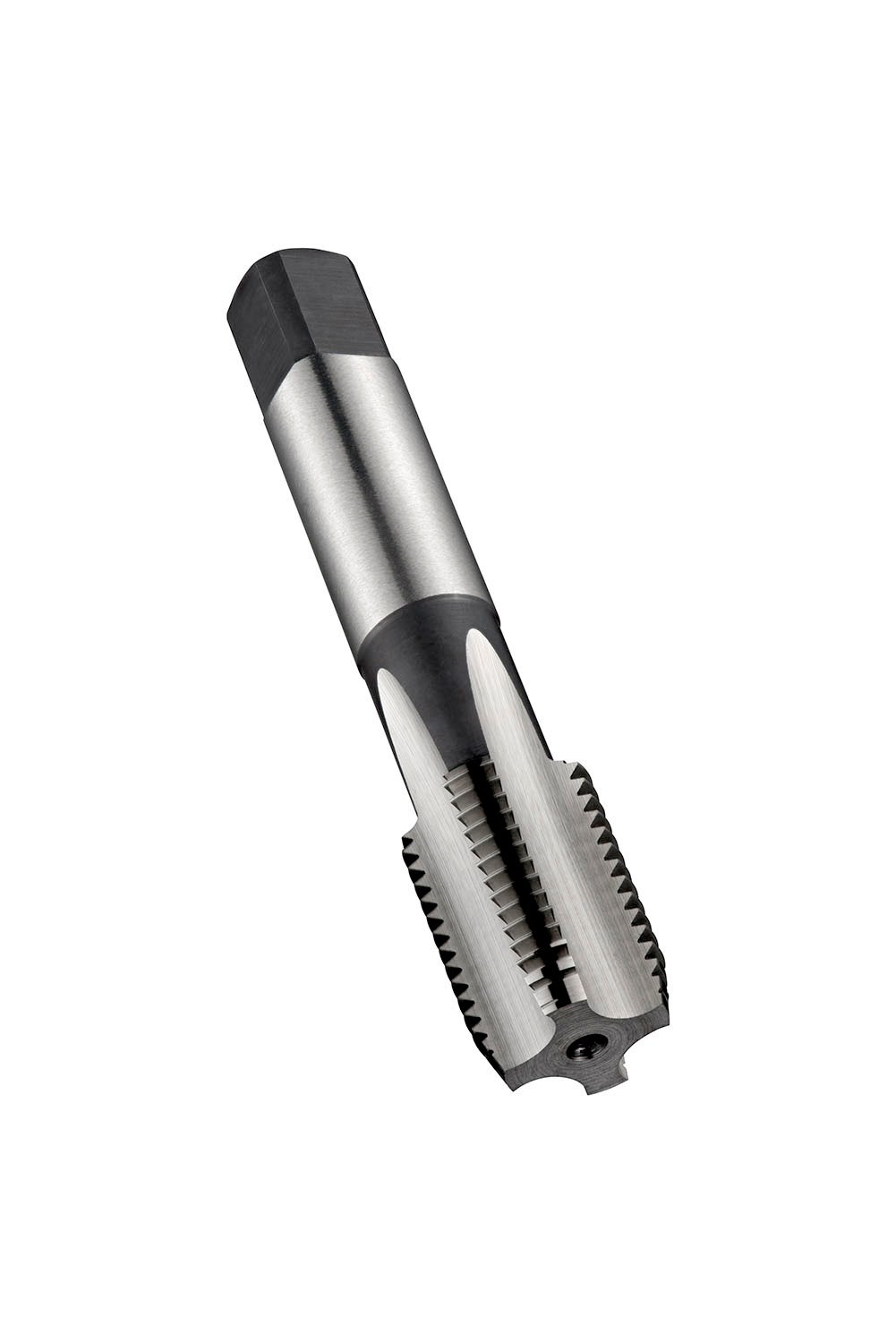

Straight flute hand tap with chamfer form C with a 2-3xP plug lead, for British Standard Pipe Taper thread Rc 1/2" with 14 TPI and Normal class of fit, dimensions according to ISO 2284 standard with 16.0mm shank and 12.5mm square drive, HSS with bright finish for 1.5xD through or blind hole threading in free machining steel and copper or copper alloys
