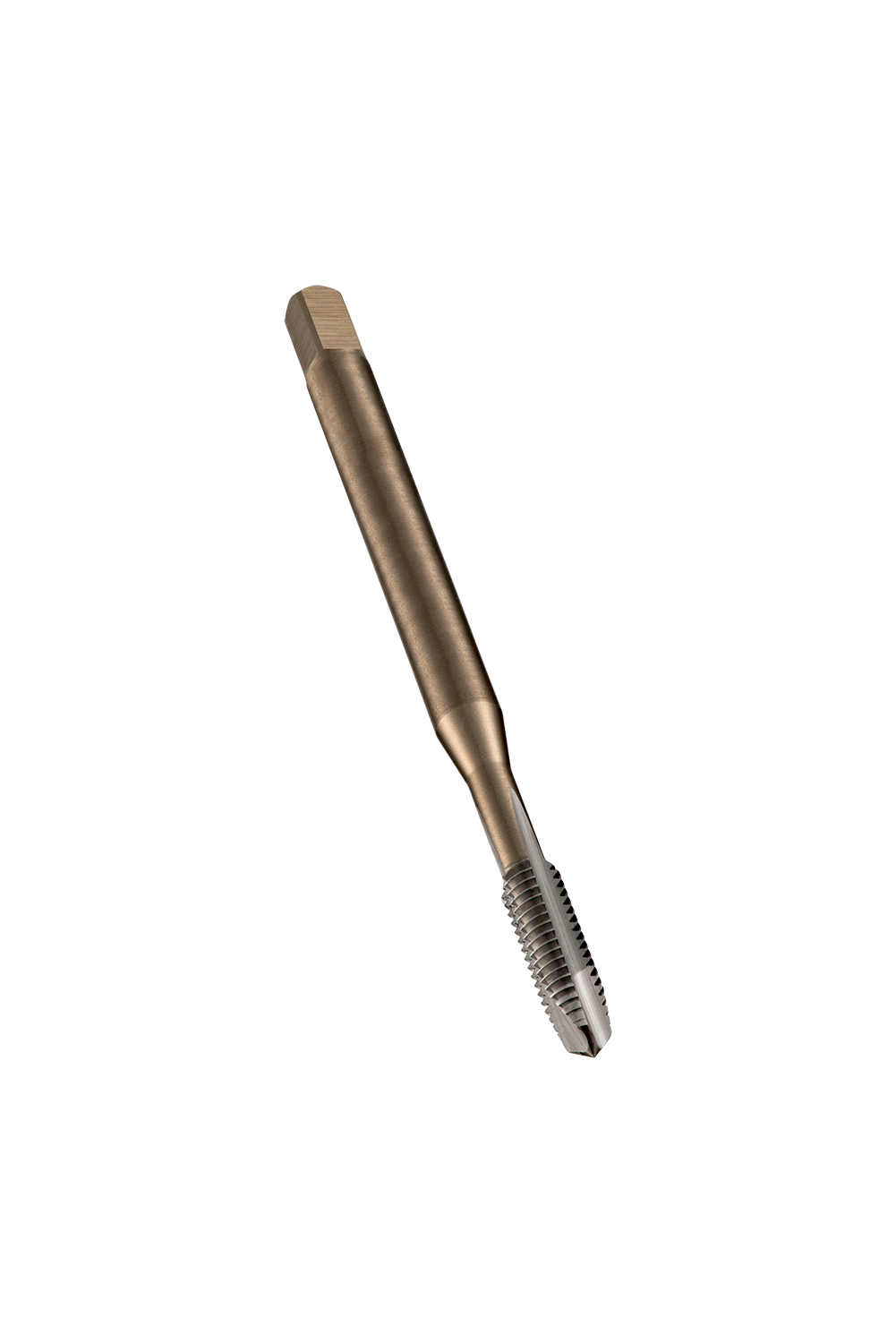

EP00M4 M Machine Tap Spiral Point
£16.20 inc. VAT
£13.50 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU EP00M4
- Type M Machine Tap Spiral Point
- Material HSS-E-PM
- Thread Size 4mm
- Application Steel and Cast Steel and Non-Ferrous Metal
- Thread Size 4mm

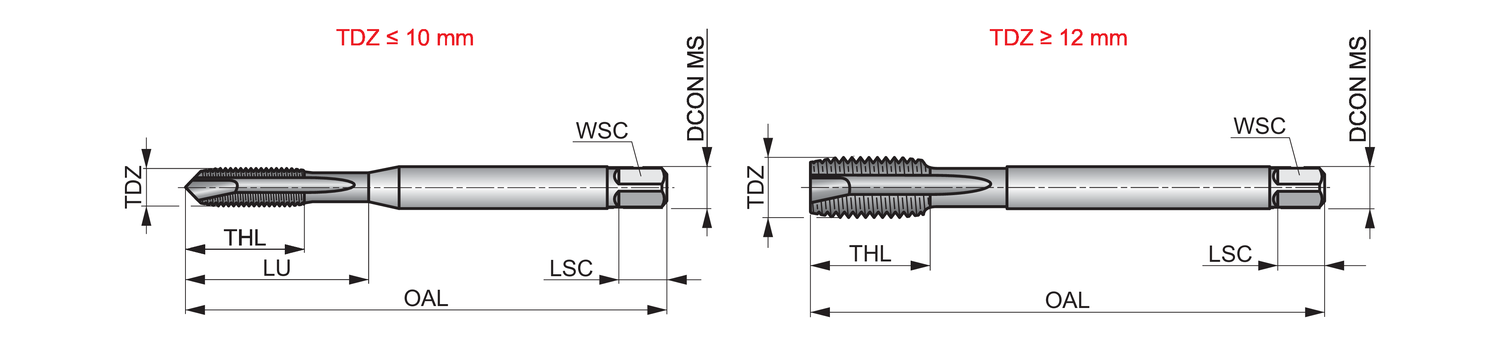

- Cutting Diameter (DC) 4.5mm
- Usable Length (UCF) 21mm
- Overall Length (OAL) 63mm
- Standard DIN 371
- Shank Type Cylindrical shank with Square
Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium
