EX00M6 M Machine Tap Spiral Flute 45deg
£18.91 inc. VAT
£15.76 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU EX00M6
- Type M Machine Tap Spiral Flute 45°
- Material HSS-E-PM
- Thread Size 6mm
- Application Steel and Cast Steel and Non-Ferrous Metal
- Thread Size 6mm
- Cutting Diameter (DC) 6mm
- Usable Length (UCF) 31mm
- Overall Length (OAL) 80mm
- Standard DIN 371
- Shank Type Cylindrical shank with Square

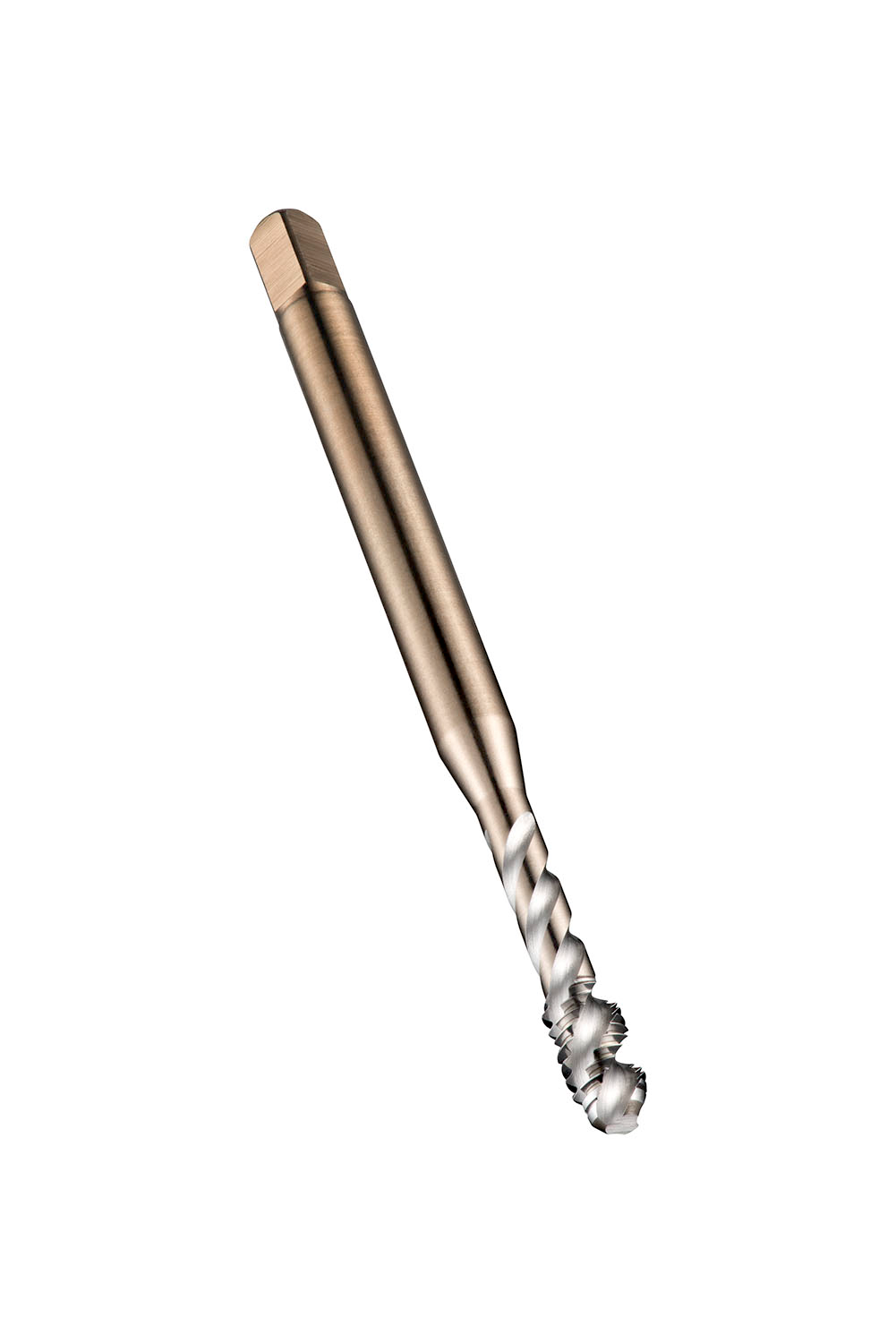

Spiral flute tap with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish and 45° helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium
