G12510.0X5.5 Counterbore - 180deg
£31.13 inc. VAT
£25.94 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU G12510.0X5.5
- Type Counterbore - 180°
- Material HSS
- Application Steel and Cast Steel, Cast Iron, and Non-Ferrous Metal

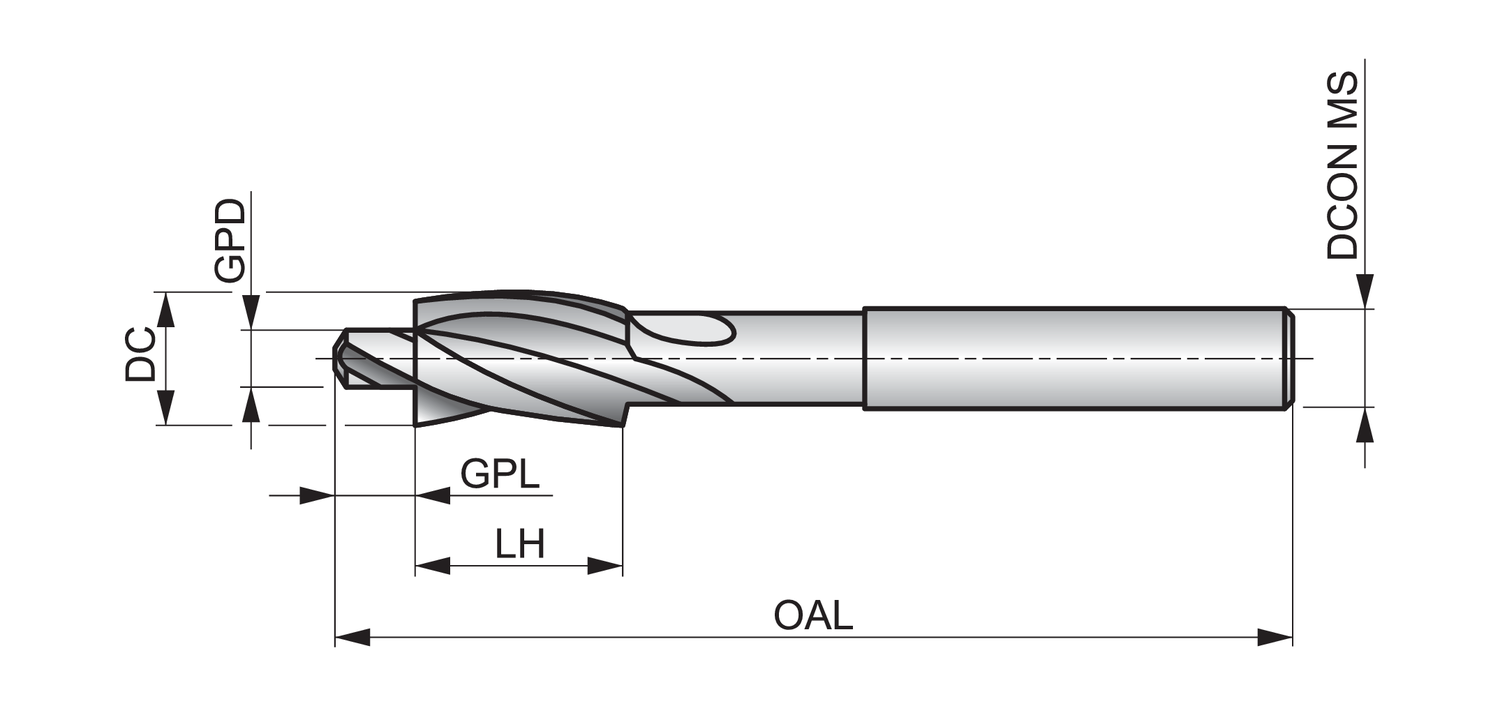

- Cutting Diameter (DC) 8mm
- Overall Length (OAL) 80mm
- Standard DIN 373
- Shank Type Cylindrical shank

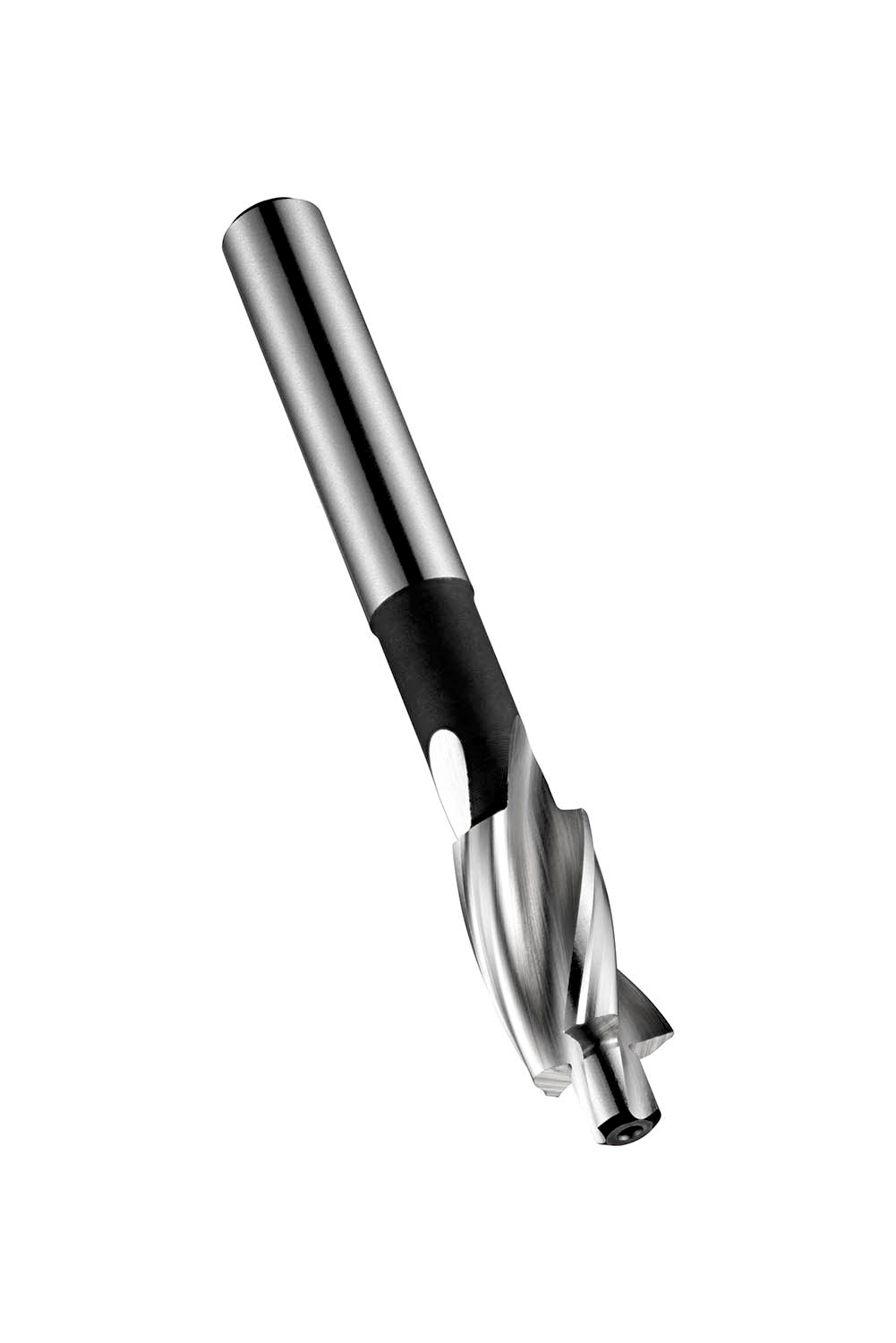

Counterbore with 3-flutes, diameter 10.00mm with an overall length of 80mm and a flute length of 18mm and 8mm straight shank, according to DIN 373 standard to produce a counterbore with the aid of a non-drilling pilot with a diameter of 5.50mm for normal fit clearance for M5, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys
