G13612.4 Countersink - 90deg
£30.99 inc. VAT
£25.83 exc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU G13612.4
- Type Countersink - 90°
- Material HSS
- Application Steel and Cast Steel and Non-Ferrous Metal

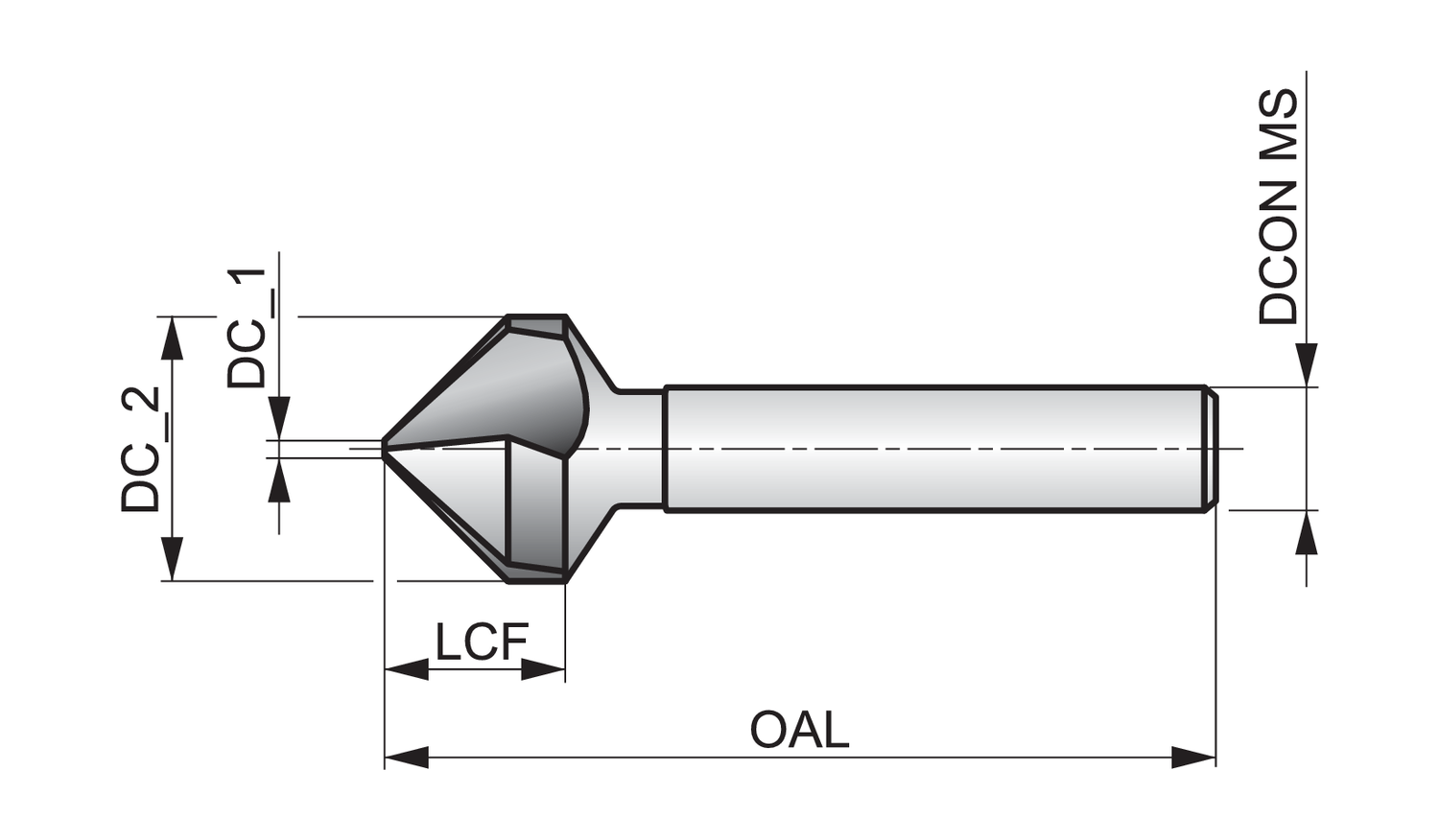

- Overall Length (OAL) 56mm
- Length Chip Flute (LCF) 8.5mm
- Standard DIN 335 C
- Shank Type Cylindrical shank

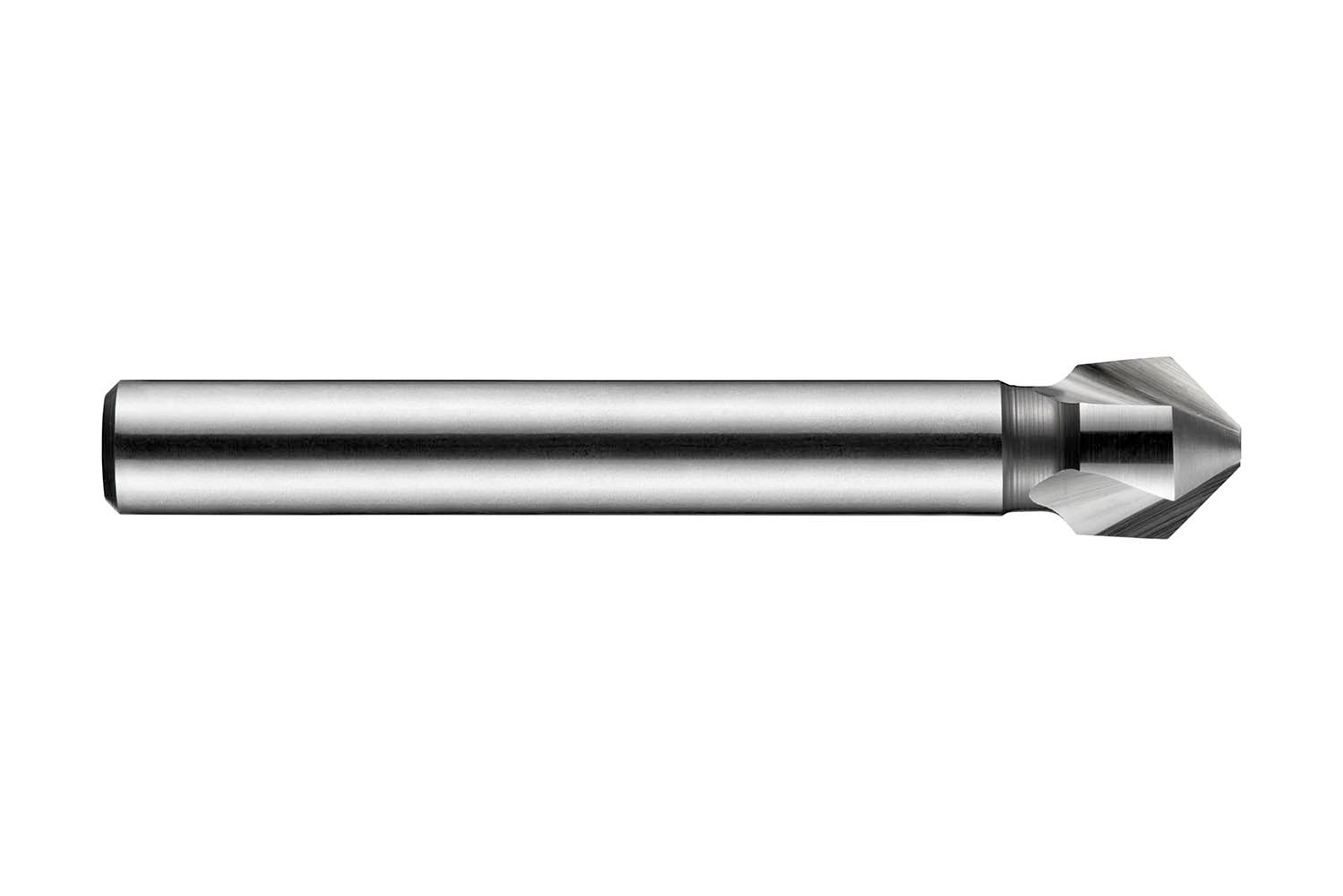

Countersink with 3-flutes, 90° chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8.5mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys
