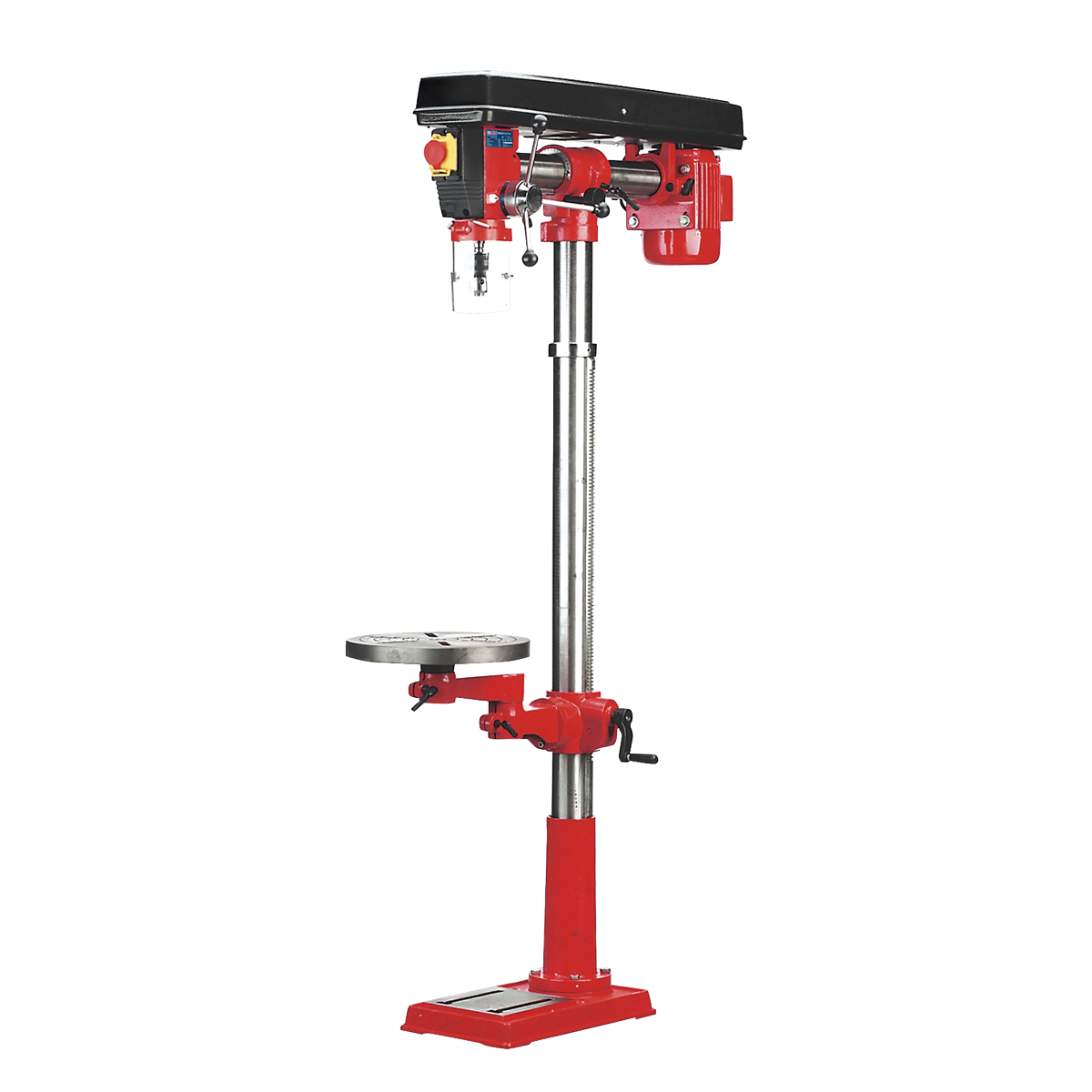

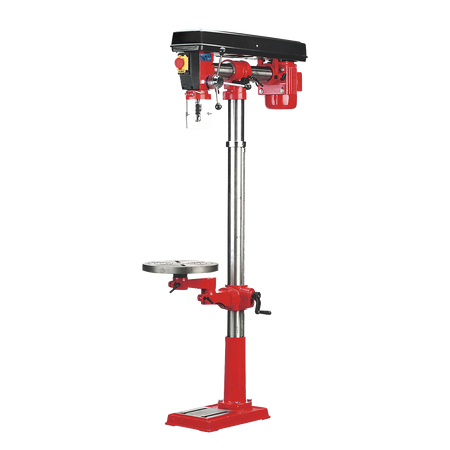

GDM1630FR Floor Standing Radial Pillar Drill 5-Speed 550W/230V

Available
£556.14 inc. VAT

Next Working Day Delivery Available - Order before 3pm Mon-Fri

Next Working Day Delivery Available - Order before 3pm Mon-Fri

Product details

  • SKU GDM1630FR
  • Barcode 5024209116817
  • Power Supply Corded: 230V
Product downloads
Description Shipping Info Collection Info
Heavy-duty construction. Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch. Radial feature allows off-table drilling and angle drilling. Features a maximum throat depth of 420mm. Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit. Mortise attachment available, order Model No. MA10. Also available as floor standing type - Model No. GDM1630FR.

• Heavy-duty construction.
• Safety devices fitted include a no-volt release switch and pulley cover cut-out microswitch.

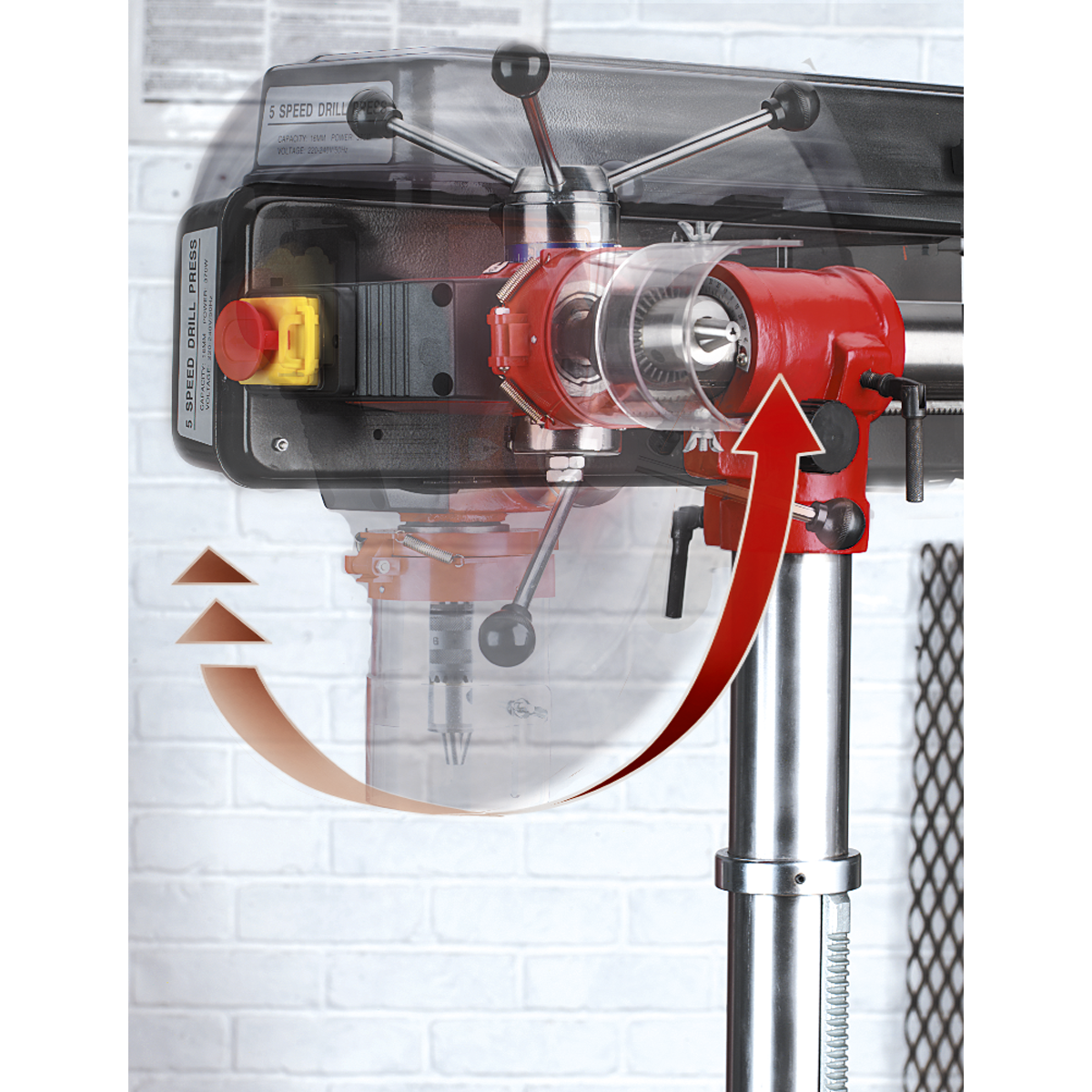

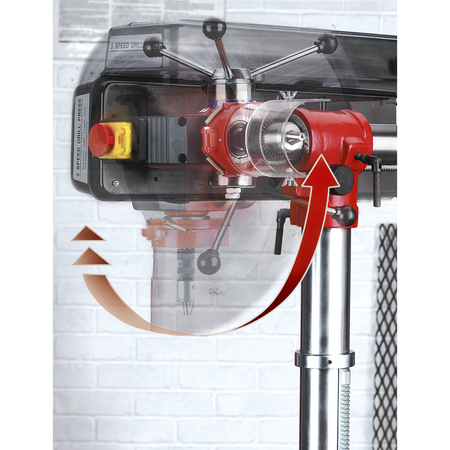

• Radial feature allows off-table drilling and angle drilling.
• Features a maximum throat depth of 420mm.

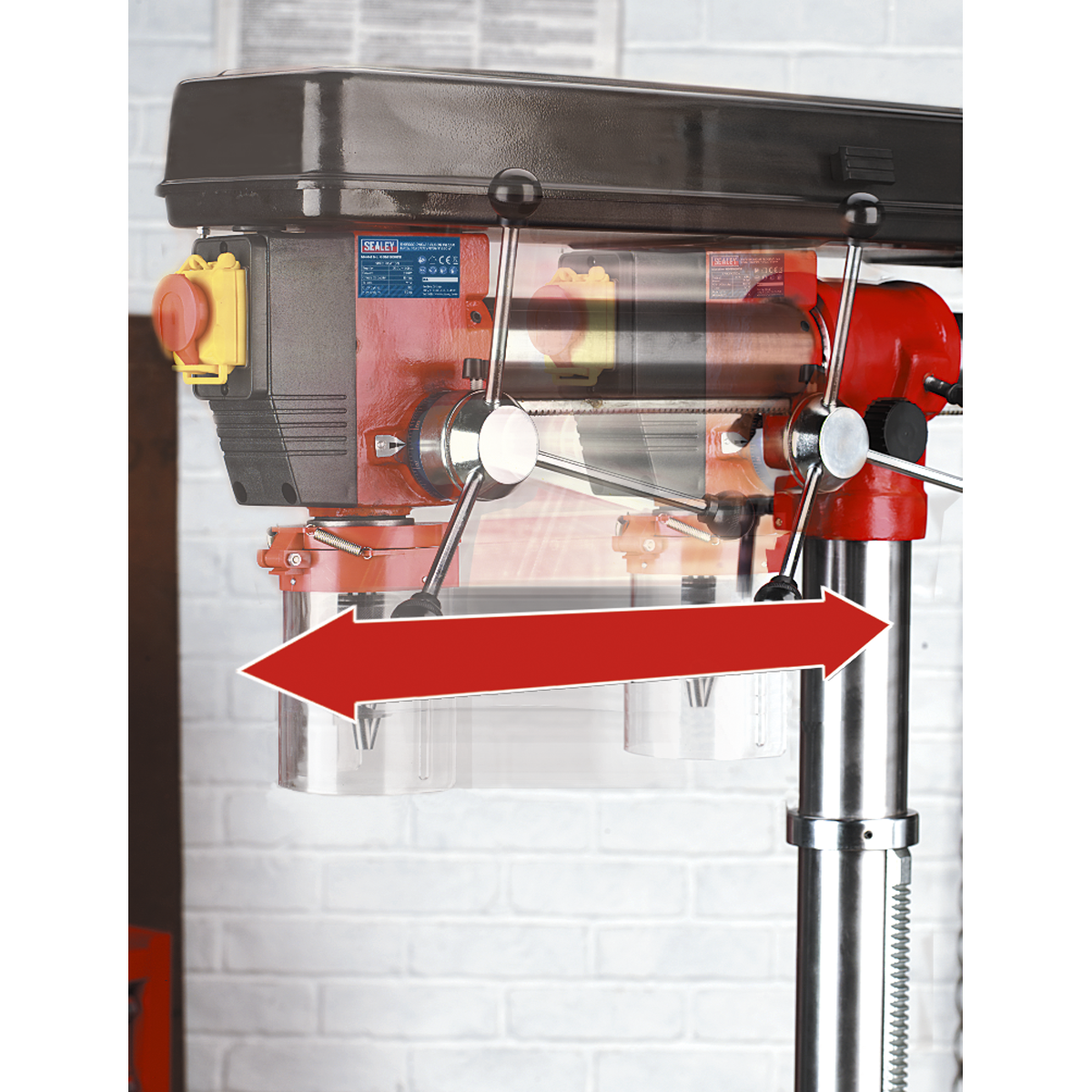

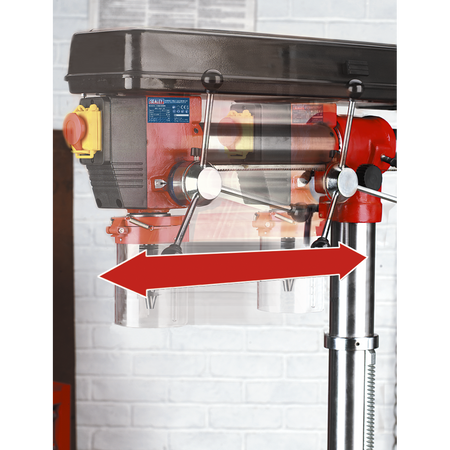

• Radial arm controlled by rack and pinion assembly allowing fine positioning of drill bit.
• Also available as bench mounting type - GDM790BR.
• Mortise attachment available, order Model No. MA10.
• 16mm(5/8") Capacity chuck, MT2.
• Height: 1620mm.
• Spindle Centre to Column - Max: 420mm.
• Motor Power: 550W.
• Column Diameter: 70mm.
• Spindle Travel: 80mm.
• Weight: 59kg.
