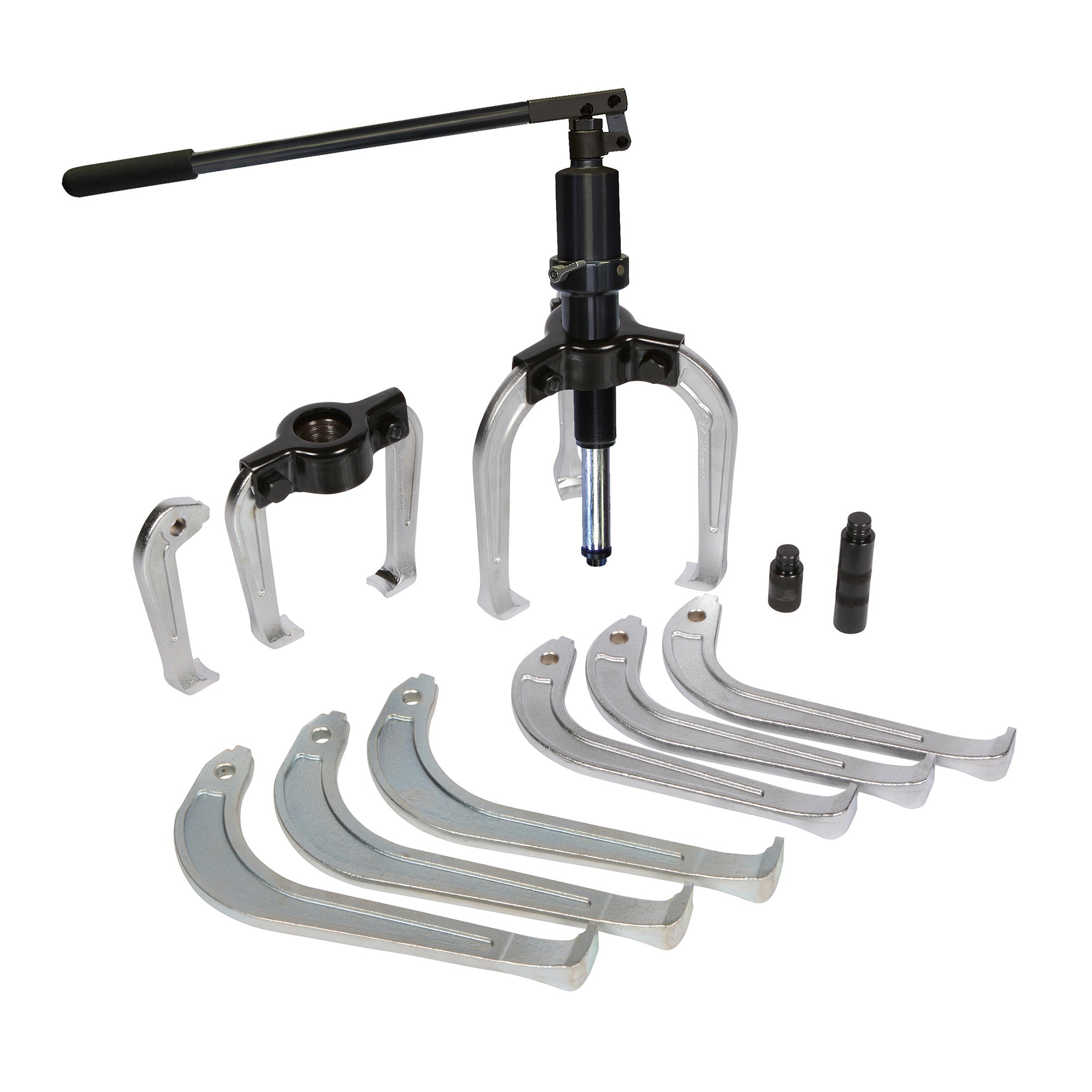

Hydraulic 2/3 Leg Puller Kit 50-250mm- Extra Travel Ram

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets

• Wide range of automotive and industrial applications

• Powered by 150000XT Extra Travel Hydraulic Ram

• Safe and easy to use

• 8 tonnes of force with minimum effort

• Easy to adjust

• Non-twisting for improved stability

• Supplied with nose piece for use on centred shafts

• Self centering and self locking

• Redesigned legs, improving strength

• Makes 8 different twin/triple leg pullers
• Supplied in metal case

Equivalent to TMHP 10E TMHC 110E

Dimensions:

• Puller Spread Min - Max: 50 - 250mm
• Puller Reach Max: 250mm
• Ram Extension: 50 / 100 / 150mm

 150000XT Extra Travel Ram

• Measurable 8 tonnes of pressure capacity.
  85mm of travel allows for reduced setting operations and saves time.
• 4 x faster output operation than standard 1500 Series ram.
• Removable handle can be rotated 360°.
• Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded.
• Oil hydraulics work in any position - even upside down.
• Features piston with spring return.
• Compatible with the 1500 Series Puller Range where the 8 Tonne Hydraulic Ram is used.

Contents:

• 150000XT 1 x 1500 Series 8 Tonne Extra Travel Ram
• 15241200 1 x Twin Head
• 15341300 1 x Triple Head
• 15242200 1 x Ram Extension - 50mm
• 15262400 1 x Ram Extension - 100mm
• 15272600 1 x Ram Extension - 150mm
• 15242400 3 x Legs - 100mm
• 15262600 3 x Legs - 150mm
• 15282800 3 x Legs - 200mm
• 15292900 3 x Legs - 250mm (extra wide)
