Sykes Pickavant

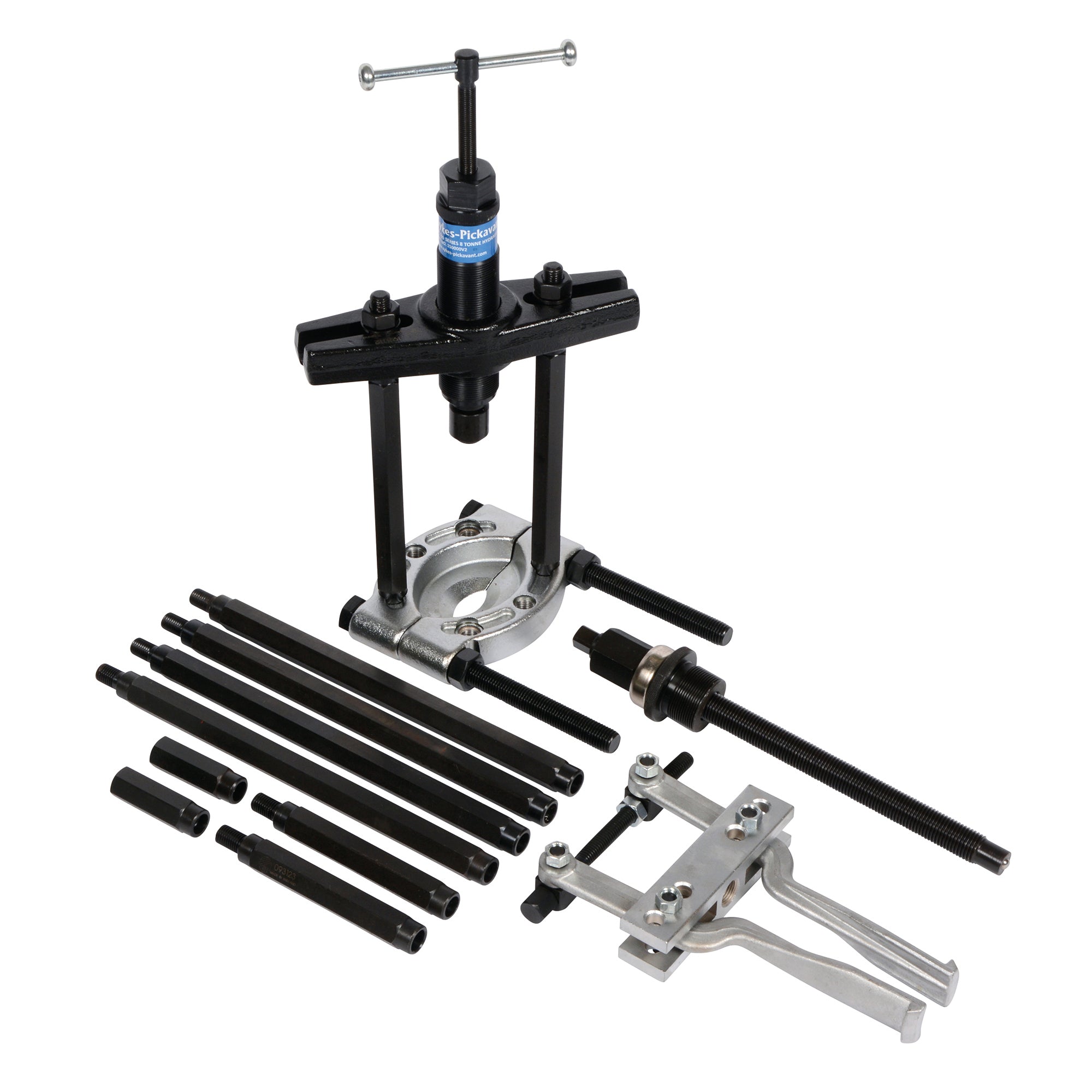

Hydraulic Internal/External Puller & Separator Kit

Unavailable
£768.92 inc. VAT

Product details

  • SKU 15600000
  • Barcode 5012737842063
  • Type Hydraulic Puller & Separator Kits
  • Spread Max External 145mm
  • Spread Min External 35mm
  • Spread Max Internal 145mm
  • Spread Min Internal 40mm
Description Shipping Info Collection Info

Hydraulic 1500 series

  • For removing bearings, gears where access behind components is too restricted to use standard pullers
  • Drop forged, high quality steel, heat treated for strength and durability
  • Separators have tapered edge for insertion behind close fitting bearings, gears etc.
  • Internal puller has screw adjustable legs for positive fit
  • Supplied in metal case

Dimensions:

  • External Spread Min - Max: 35-145mm
  • Internal Spread Min - Max: 40-150mm
  • External Reach Max: 863mm
  • Internal Reach Min - Max: 40 - 150mm

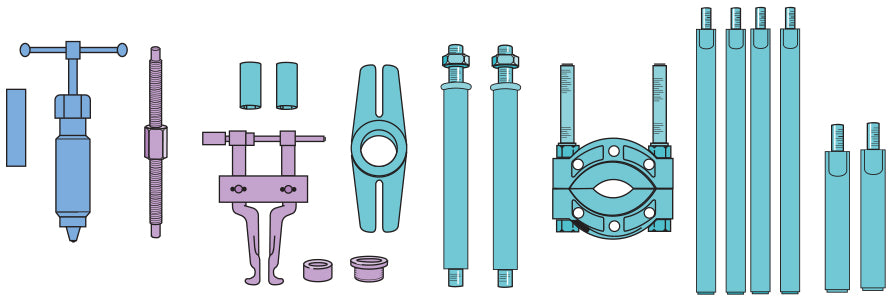

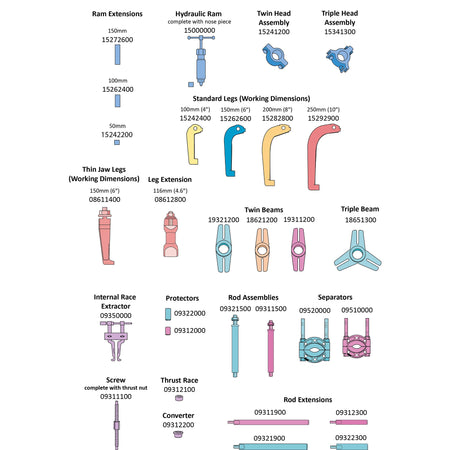

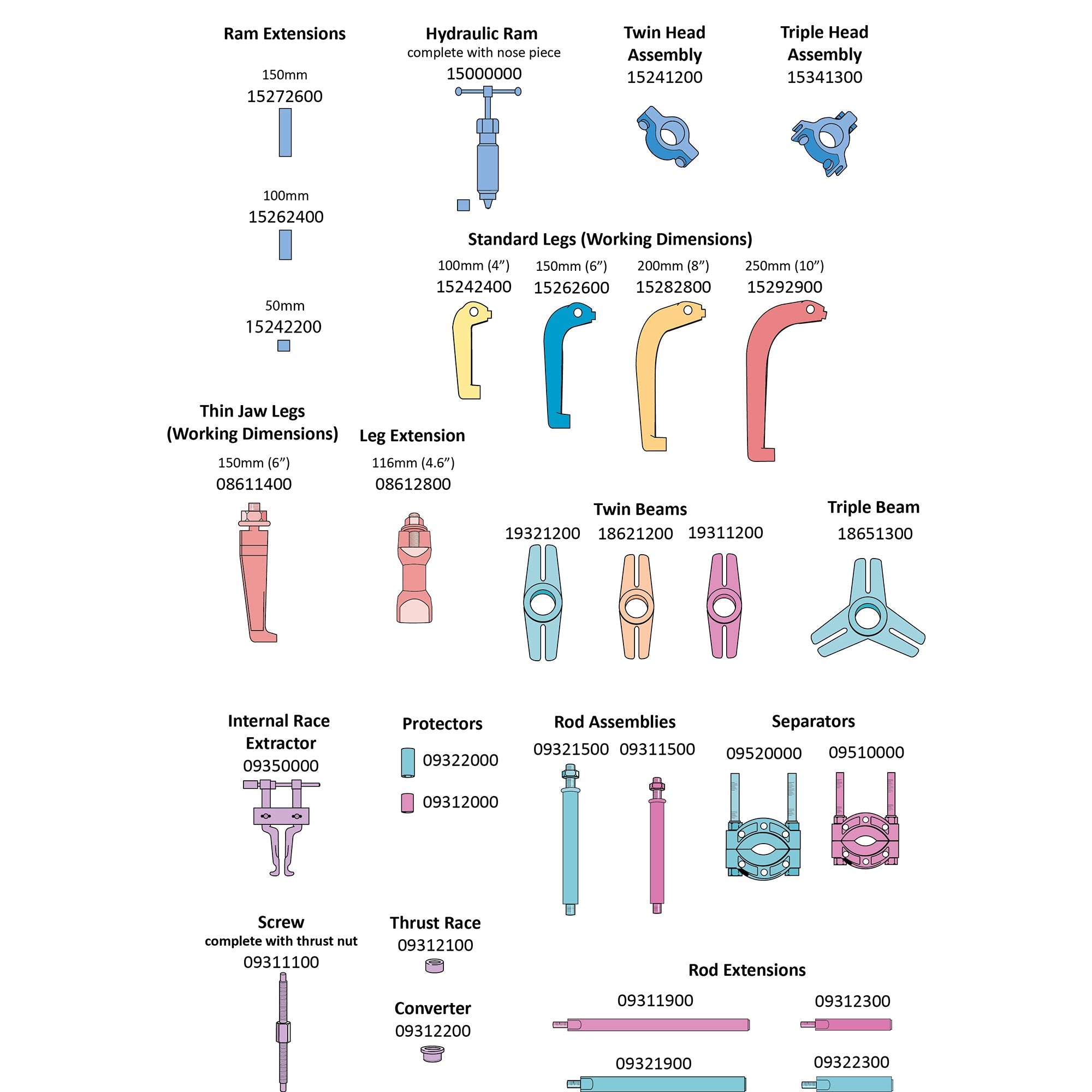

Contents:

  • 1500 Series Hydraulic Ram With Nose Piece
  • 15272600 1 x Ram Extension - 150mm
  • 19321200 1 x Beam
  • 09520000 1 x Separator 35-145mm
  • 09321500 2 x Main Rods
  • 09321900 4 x Extension Rods
  • 09322300 2 x Extension Rods 5 inch
  • 09350000 1 x Internal Race Extractor
  • 09311100 1 x Forcing Screw C/W Nut
  • 09312100 1 x Thrust Race
  • 09312200 1 x Convertor
  • 09322000 2 x Protectors
