Hydraulic Internal Extractor Puller & Separator Kit 155800V2

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets
• Wide range of automotive and industrial applications
• Powered by 1500 series hydraulic ram
• Safe and easy to use
• 8 tonnes of force with minimum effort
• Easy to adjust
• Non-twisting for improved stability
• Supplied with nose piece for use on centered shafts
• Self centering and self locking
• Redesigned legs, improving strength
• The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
• The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
• Makes 8 different twin/triple leg pullers, plus heavy duty bearing separator kit and internal extractor kit
• Supplied in metal case


Dimensions:

• Puller Spread Min - Max: 50-250mm
• Puller Reach Max: 250mm
• External Spread Min - Max: 35-140mm
• External Reach Max: 863mm
• Internal Reach Min - Max: 40 - 150mm

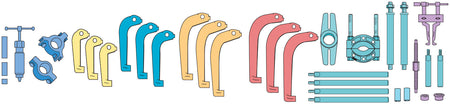

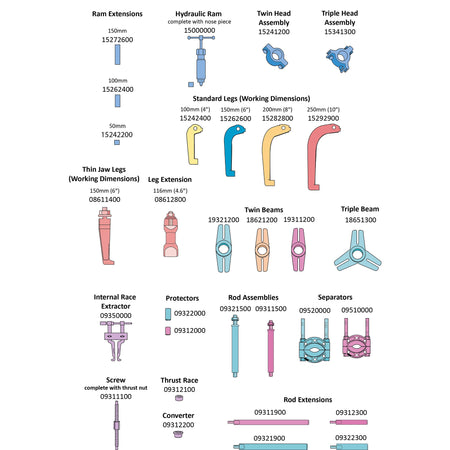

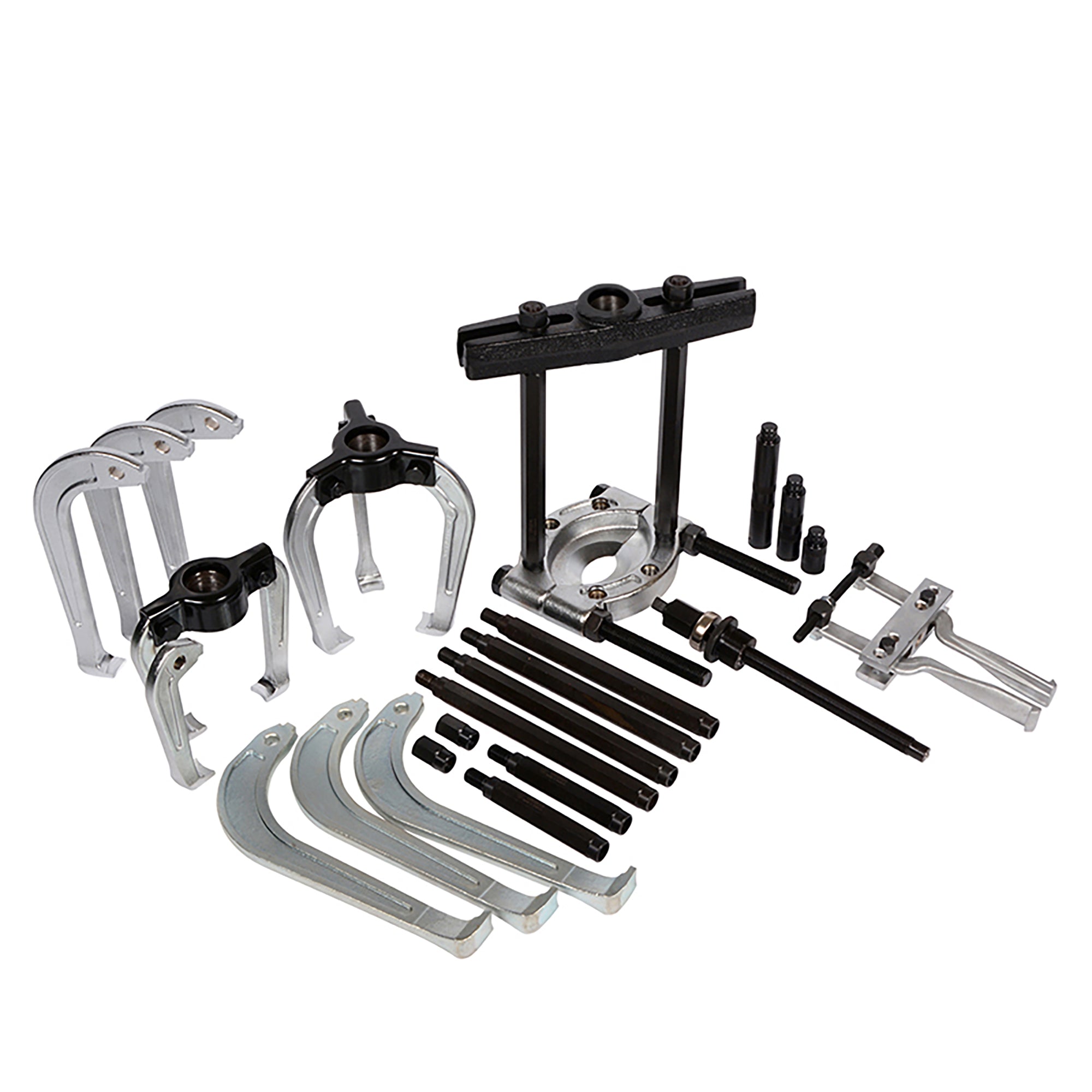

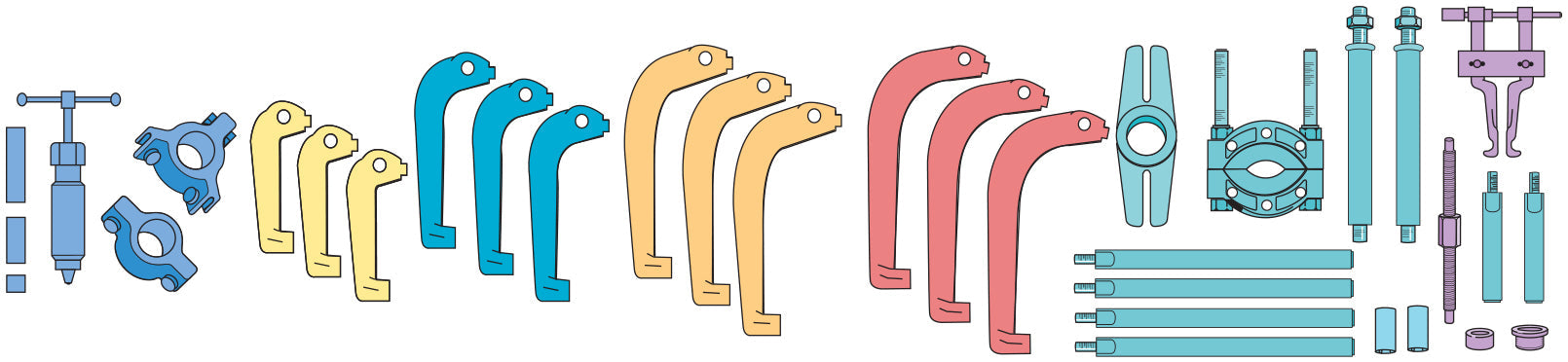

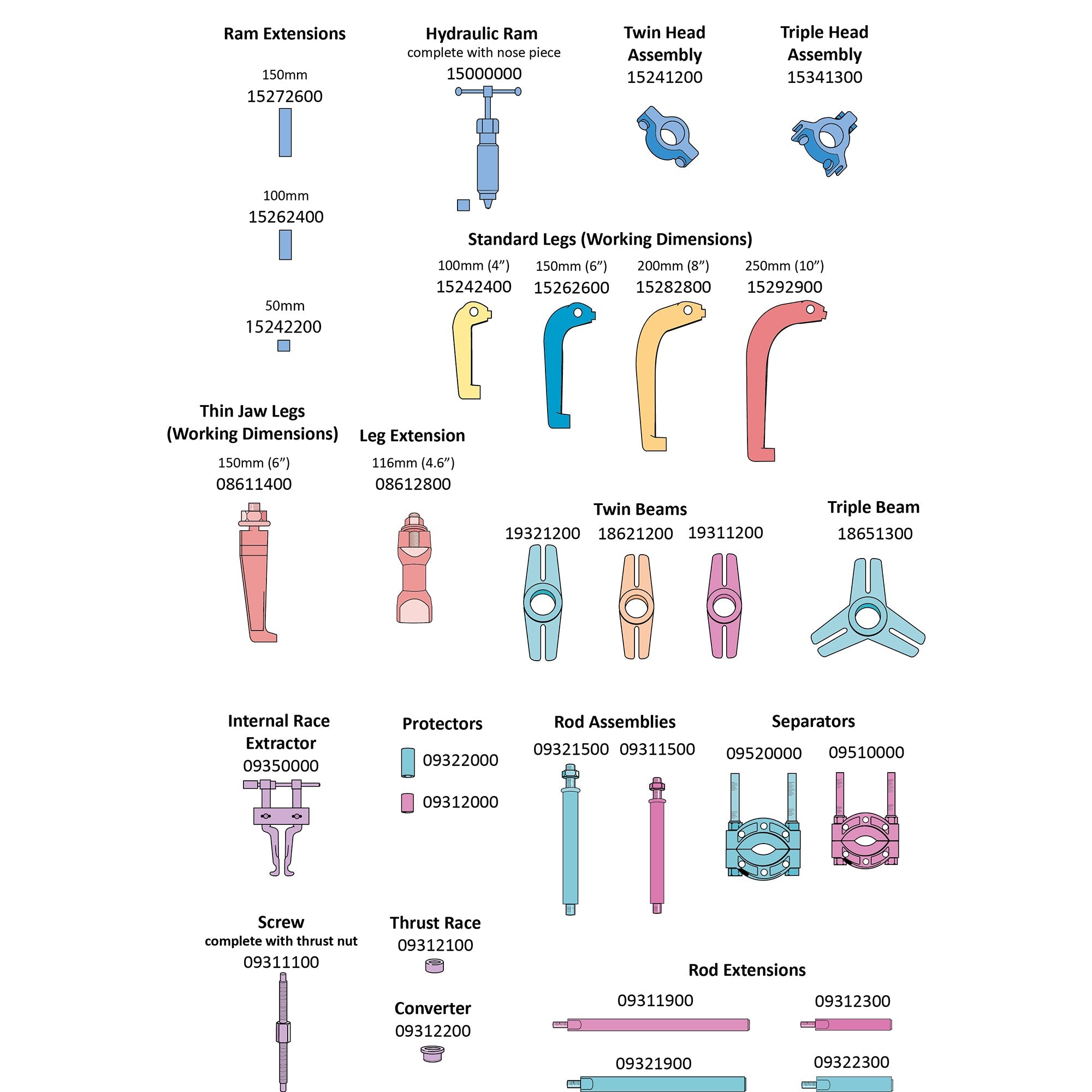

Contents:

• 1500 Series Hydraulic Ram With Nose Piece
• 15241200 1 x Twin Head
• 15341300 1 x Triple Head
• 15242200 1 x Ram Extension - 50mm
• 15262400 1 x Ram Extension - 100mm
• 15272600 1 x Ram Extension - 150mm
• 15242400 3 x Leg - 100mm
• 15262600 3 x Leg - 150mm
• 15282800 3 x Leg - 200mm
• 15292900 3 x Leg - 250mm (Extra Wide)
• 19321200 1 x Twin Beam
• 09520000 1 x Separator 35-145mm
• 09321500 2 x Main Rod
• 09321900 4 x Extension Rod
• 09322300 2 x Extension Rod 5 inch
• 09350000 1 x  Internal Race Extractor
• 09311100 1 x Forcing Screw C/W Nut
• 09312100 1 x Thrust Race
• 09312200 1 x Convertor
• 09322000 2 x Protector
