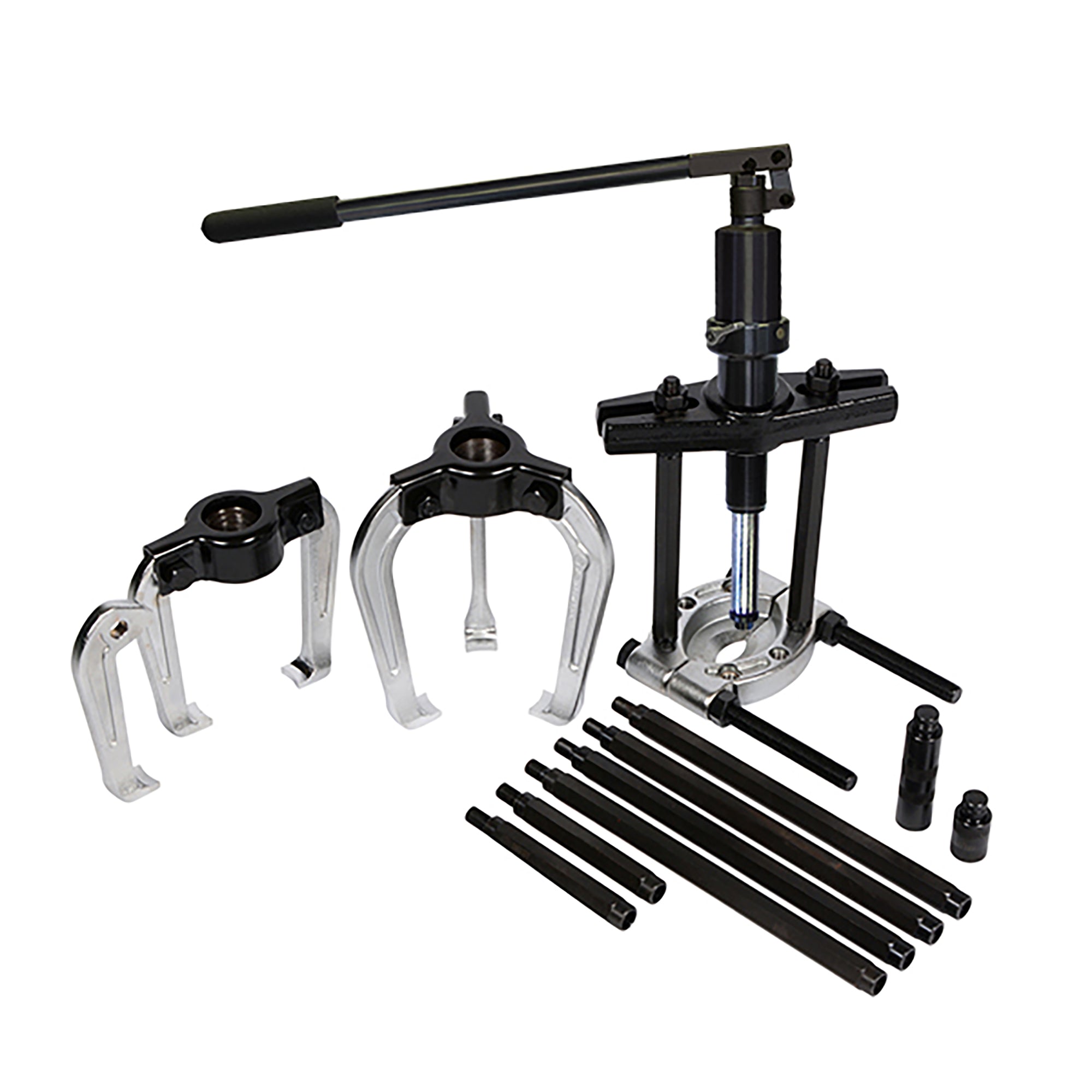

Hydraulic Puller & Separator Kit 155200XT

• Removes gears, bearings, pulleys and sprockets

• Wide range of automotive and industrial applications

• Powered by 150000XT Extra Travel Hydraulic Ram.

• Safe and easy to use

• 8 tonnes of force with minimum effort

• Easy to adjust

• Non-twisting for improved stability

• Supplied with nose piece for use on centered shafts

• Self centering and self locking

• Redesigned legs, improving strength

• The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
• The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.

• Makes 4 different twin/triple leg pullers, plus bearing separator kit
• Supplied in metal case

Equivalent to TMHP 10E TMHC 110E

Dimensions:

• Puller Spread Min - Max: 50-150mm
• Puller Reach Max: 150mm
• External Spread Min - Max: 20-105mm
• External Reach Max: 876mm

 150000XT Extra Travel Ram

• Measurable 8 tonnes of pressure capacity.
  85mm of travel allows for reduced setting operations and saves time.
• 4 x faster output operation than standard 1500 Series ram.
• Removable handle can be rotated 360°.
• Integrated pressure relief control valve opens at 8 tonnes and cannot be overloaded.
• Oil hydraulics work in any position - even upside down.
• Features piston with spring return.
• Compatible with the 1500 Series Puller Range where the 8 Tonne Hydraulic Ram is used.

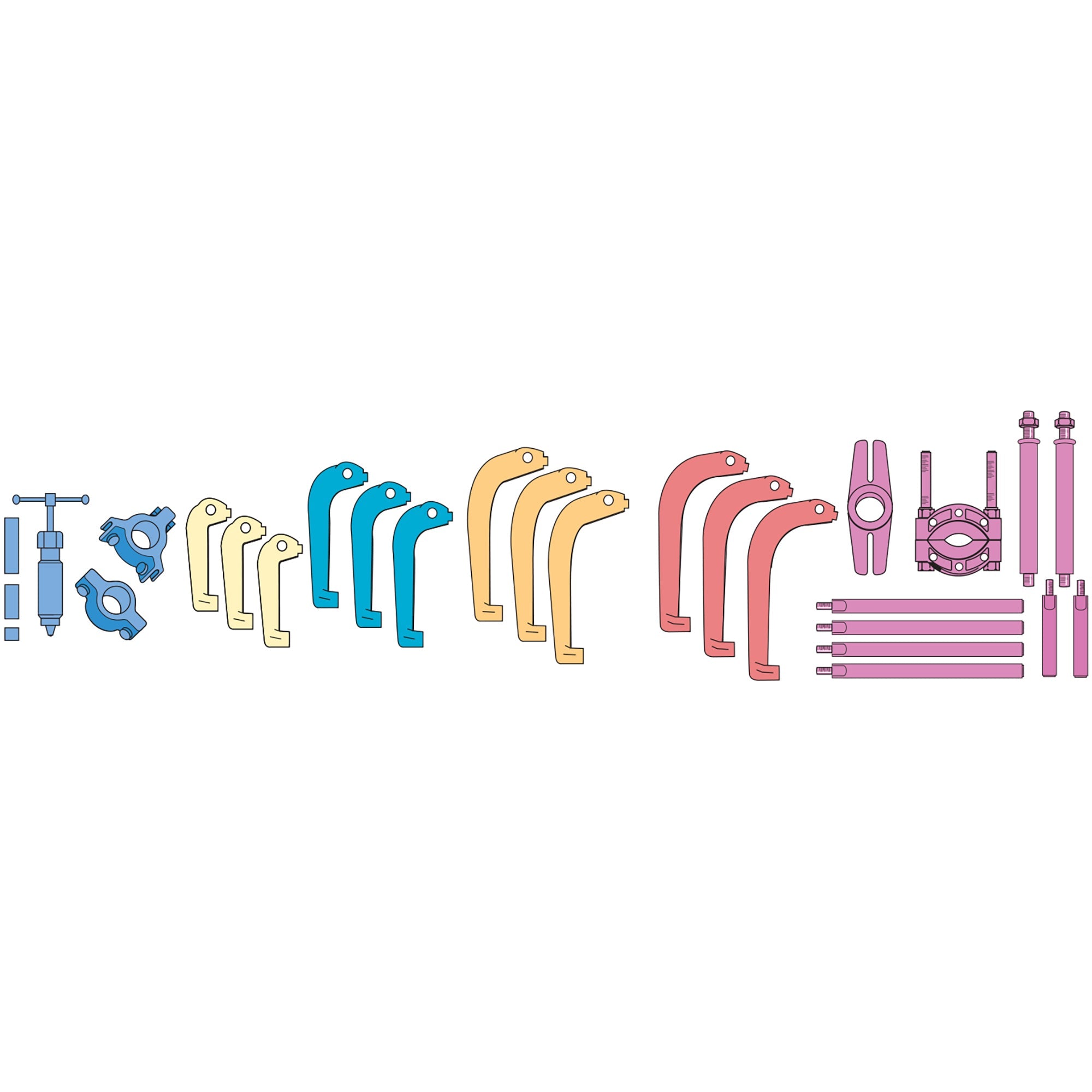

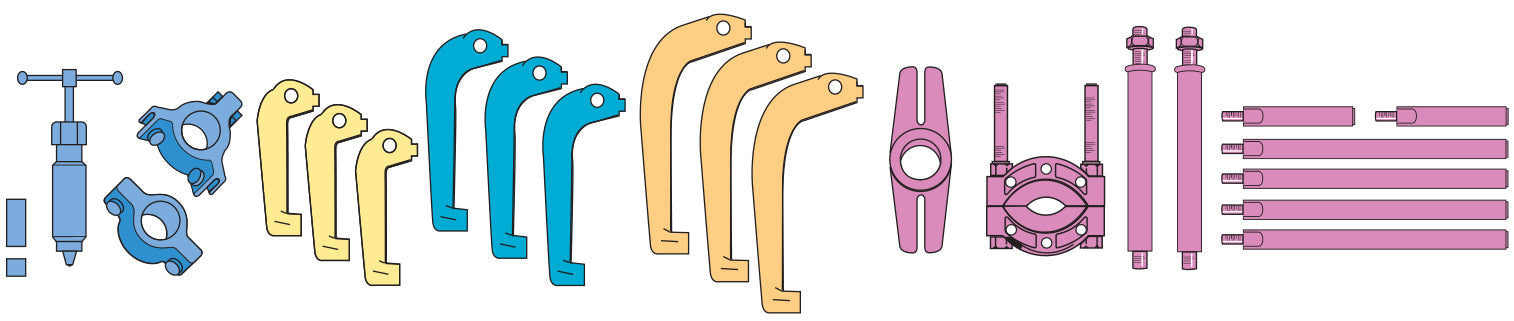

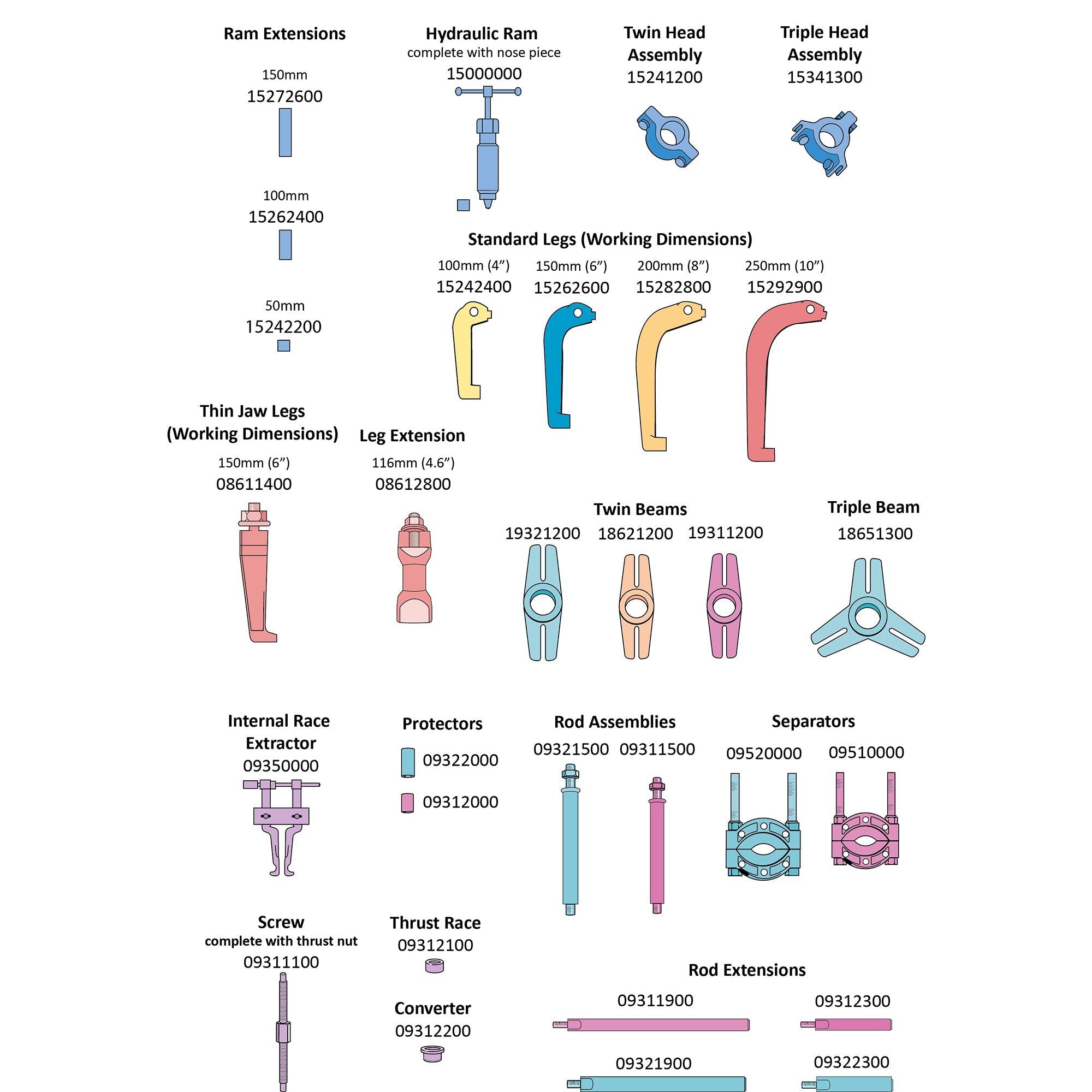

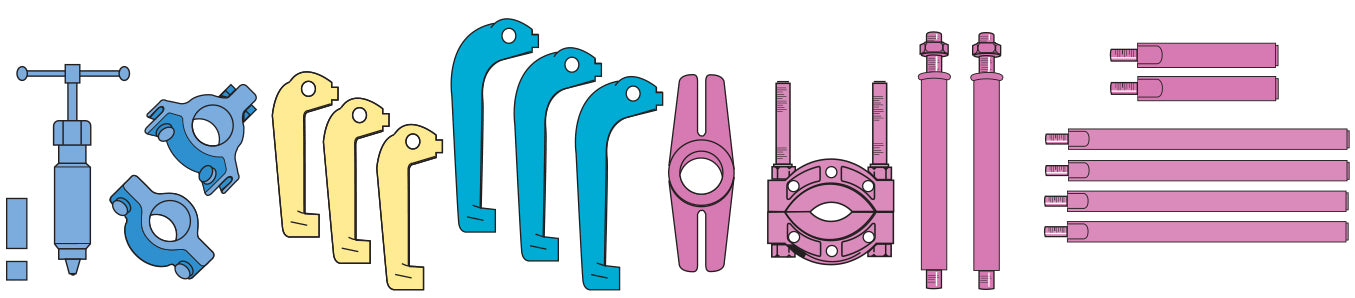

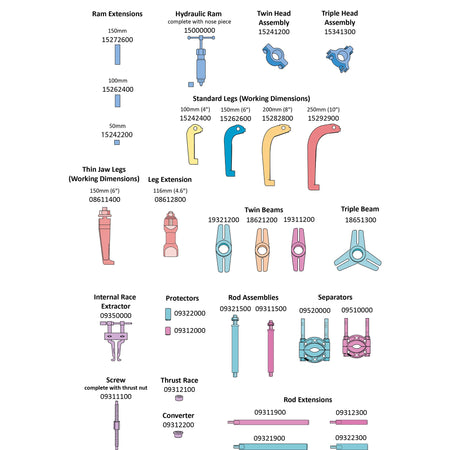

 Contents:

• 150000XT 1 x 1500 Series 8 Tonne Extra Travel Ram
• 15241200 1 x Twin Head
• 15341300 1 x Triple Head
• 15242200 1 x Ram Extension - 50mm
• 15262400 1 x Ram Extension - 100mm
• 15242400 3 x Legs - 100mm
• 15262600 3 x Legs - 150mm
• 19311200 1 x Twin Beam
• 09510000 1 x Separator 20-105mm
• 09311500 2 x Main Rods
• 09311900 4 x Extension Rods
• 09312300 2 x Extension Rods 5 inch
