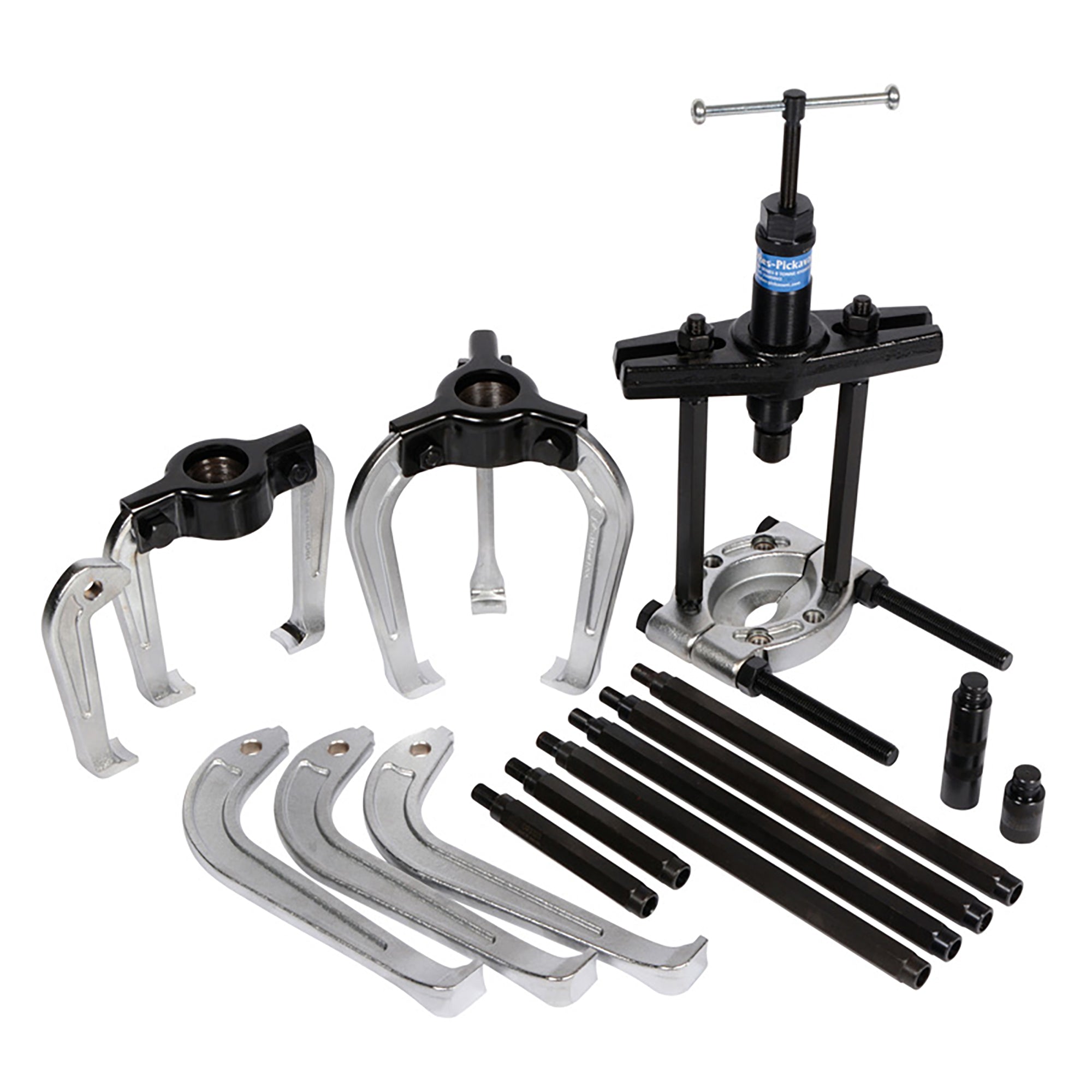

Hydraulic Puller & Separator Kit 15520800

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets
• Wide range of automotive and industrial applications
• Powered by 1500 series hydraulic ram
• Safe and easy to use
• 8 tonnes of force with minimum effort
• Easy to adjust
• Non-twisting for improved stability
• Supplied with nose piece for use on centered shafts
• Self centering and self locking
• Redesigned legs, improving strength
• The separator is a versatile tool where a long reach is required to draw a bearing from a shaft.
• The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access.
• Makes 6 different twin/triple leg pullers, plus bearing separator kit
• Supplied in metal case


Dimensions:

• Puller Spread Min - Max: 50-200mm
• Puller Reach Max: 200mm
• External Spread Min - Max: 20-105mm
• External Reach Max: 876mm

Contents:

• 1500 Series Hydraulic Ram With Nose Piece
• 15241200 1 x Twin Head
• 15341300 1 x Triple Head
• 15242200 1 x Ram Extension - 50mm
• 15262400 1 x Ram Extension - 100mm
• 15242400 3 x Legs - 100mm
• 15262600 3 x Legs - 150mm
• 15282800 3 x Legs - 200mm
• 19311200 1 x Twin Beam
• 09510000 1 x Separator 20-105mm
• 09311500 2 x Main Rods
• 09311900 4 x Extension Rods
• 09312300 2 x Extension Rods 5 inch
