Hydraulic Twin/Triple Leg Puller Kit - Thin Jaw 18655400

Hydraulic 1500 series

• Removes gears, bearings, pulleys and sprockets

• Wide range of automotive and industrial applications

• Powered by 1500 series hydraulic ram

• Safe and easy to use

• 8 tonnes of force with minimum effort

• Easy to adjust

• Non-twisting for improved stability

• Supplied with nose piece for use on centered shafts

• Thin jaws enable access where clearance behind components is limited
• Makes 6 different hydraulic and 4 mechanical thin jaw pullers
• Supplied in metal case


Dimensions:

• Puller Spread Min - Max: 10 - 225mm
• Puller Reach Max: 225mm
• Ram Extension: 50 / 150mm

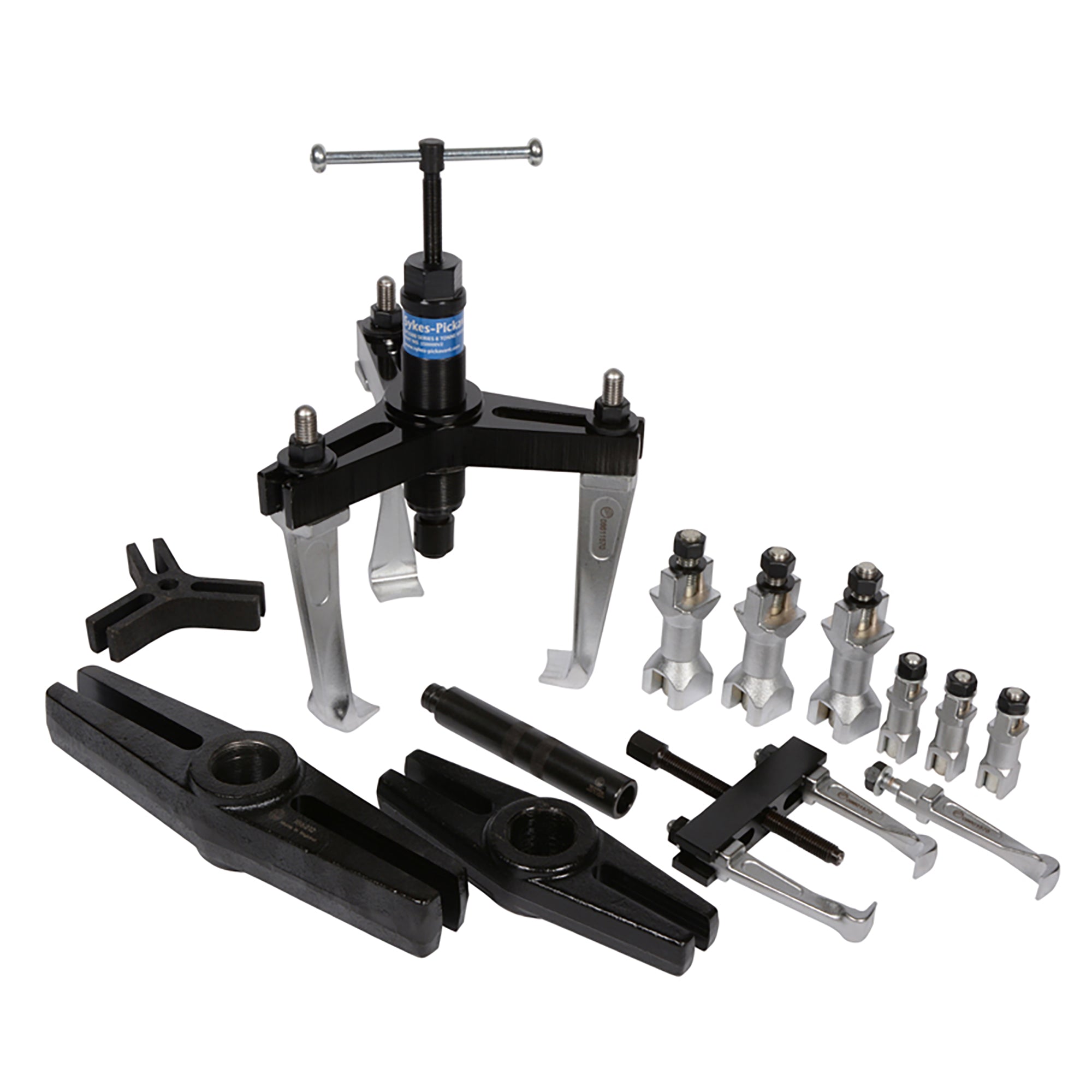

Contents:

• 150000V2 1 x Hydraulic Ram With Nose Piece
• 15242200 1 x Ram Extension - 50mm
• 15272600 1 x Ram Extension - 150mm
• 08601200 1 x Twin Beam
• 18621200 1 x Twin Beam
• 08651300 1 x Triple Beam
• 19311200 1 x Twin Beam
• 08601400 3 x Legs 75mm - Thin Jaw
• 08271100 1 x Forcing Screw 12 x 1.75 x 150mm
• 08611400 3 x Legs 150mm - Thin Jaw
• 08601300 1 x Triple Beam
• 08602800 3 x Thin Jaw Extension Set - 48mm
• 08612800 3 x Thin Jaw Extension Set - 75mm
