S76816.0 End Mill
Regular price
£224.51
inc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU S76816.0
- Type End Mill
- Material HM
- Application Steel and Cast Steel, Stainless Steel, Cast Iron, and High-Temperature Alloy

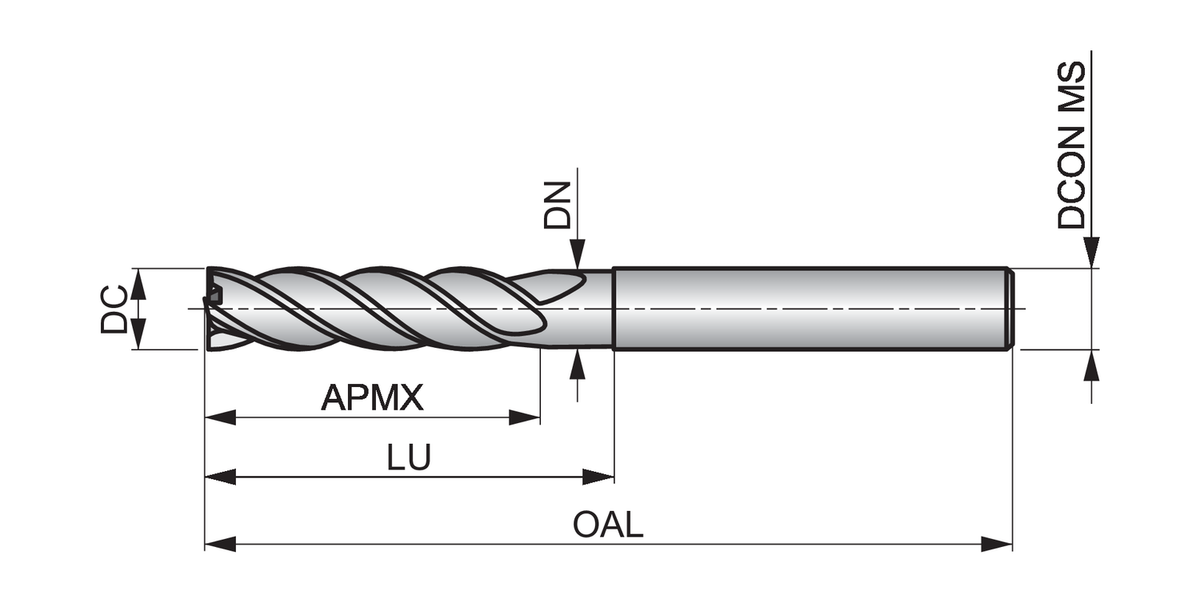

- Cutting Diameter (DC) 16mm
- Usable Length (UCF) 75mm
- Overall Length (OAL) 125mm
- Shank Type Cylindrical shank DIN 6535 HA

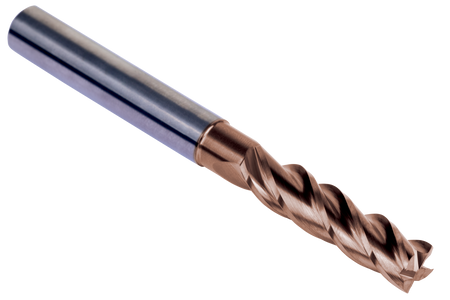

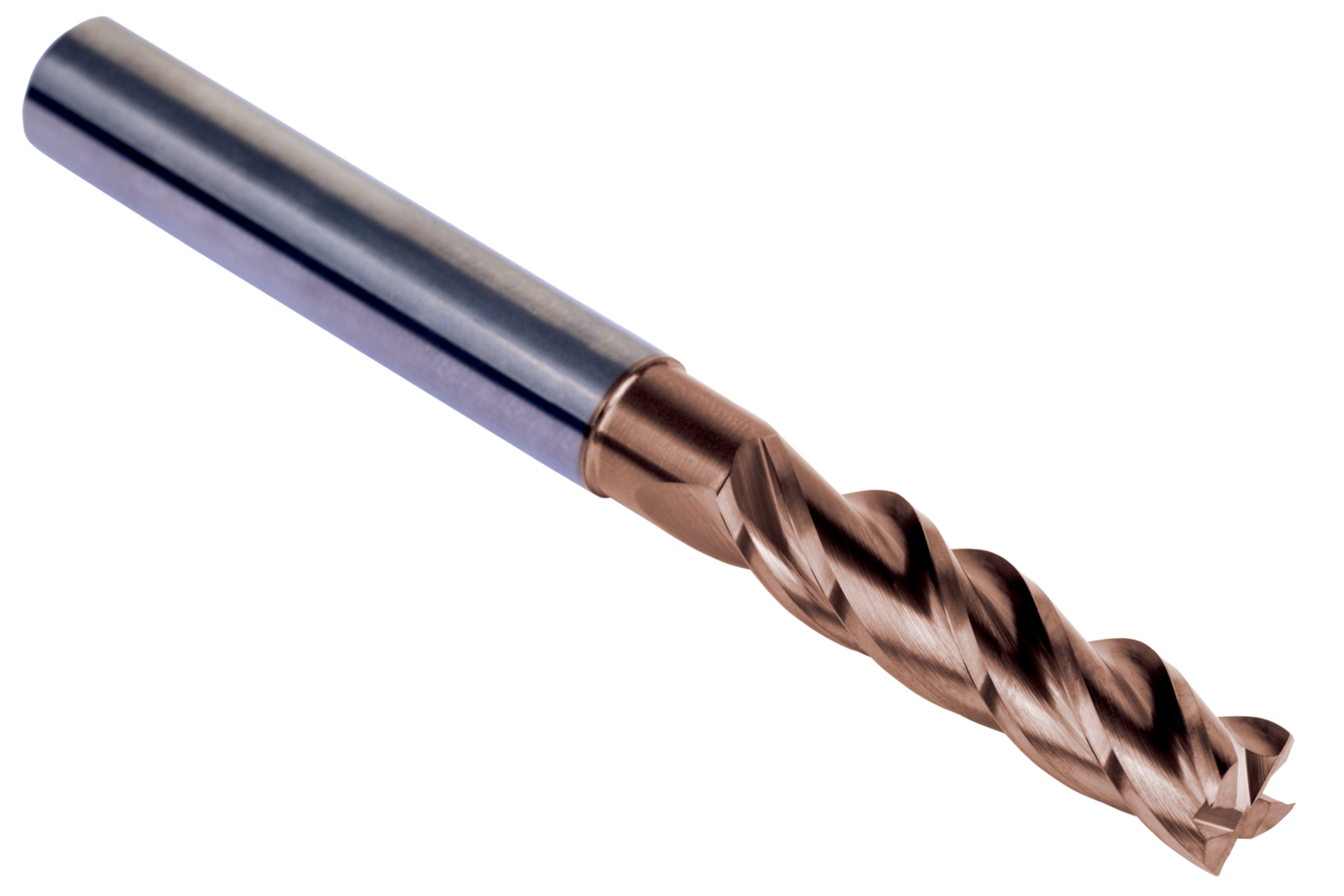

Long series End mill with 4 flutes, diameter 16mm with 65mm length of cut, 125mm overall length, 75mm reach with neck relief and 0.3mm corner radii, according to DORMER standard with a 16mm plain shank, solid carbide with TiSiN coating, unequal helix and 10° rake angle for shoulder milling and plunging in steel and cast steel, stainless steel, cast-iron or high-temperature alloys
