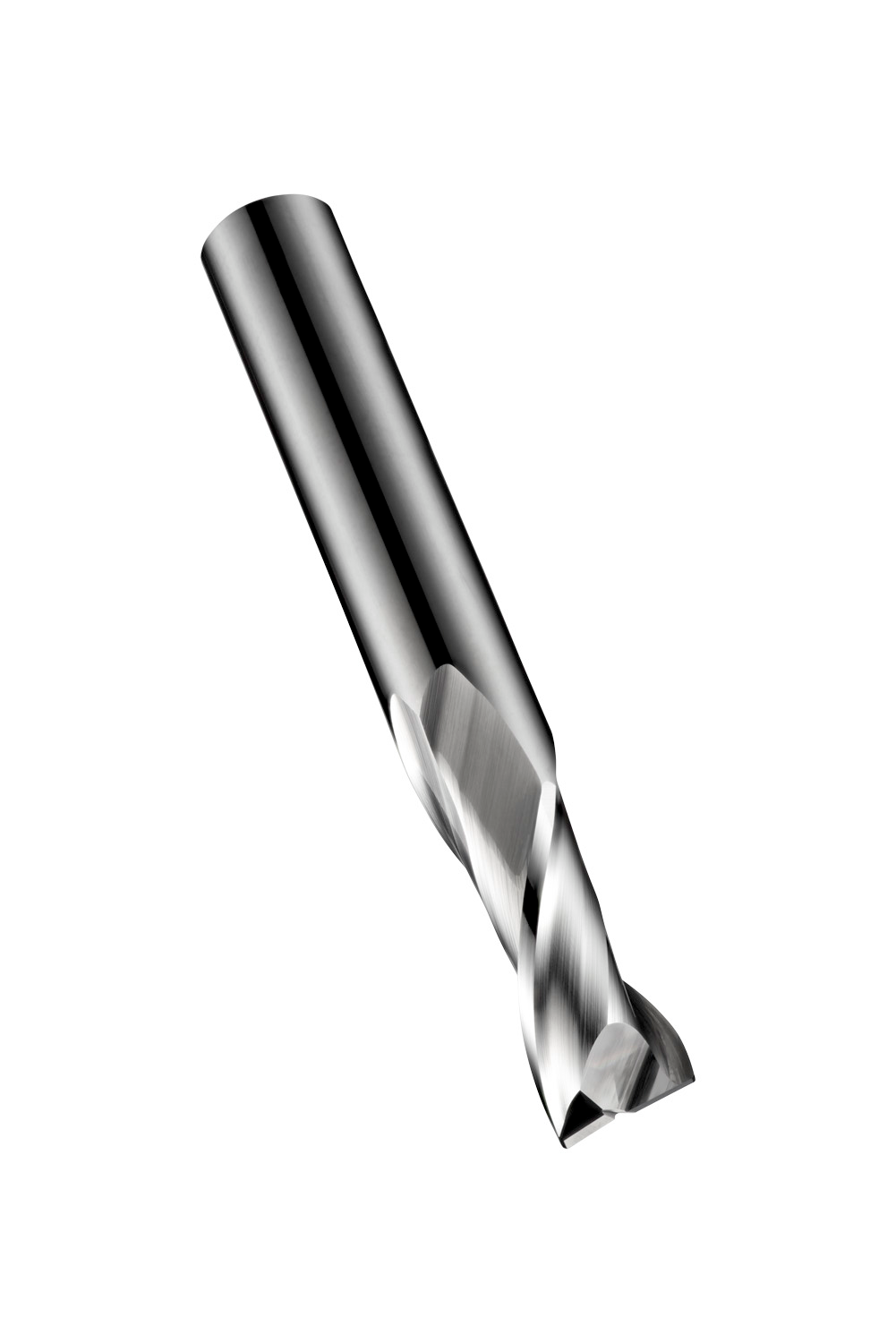

S9028.0 End Mill

Backorder
Regular price £27.42 inc. VAT

Available to order in. - Please call first if urgent

Out of Stock at SBL Services Swindon

Available to order. Collection times may vary.

Specific timeframe will be provided after ordering.

Product details

  • SKU S9028.0
  • Barcode 7320760132913
  • Type End Mill
  • Material HM
  • Application Steel and Cast Steel, Cast Iron, Non-Ferrous Metal, and High-Temperature Alloy
  • Cutting Diameter (DC) 8mm
  • Overall Length (OAL) 63mm
  • Shank Type Cylindrical shank DIN 6535 HA

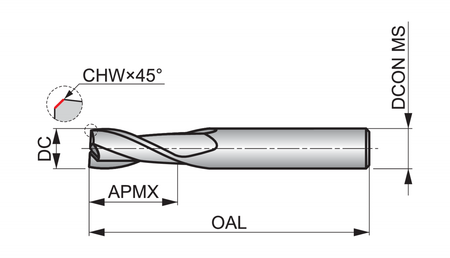

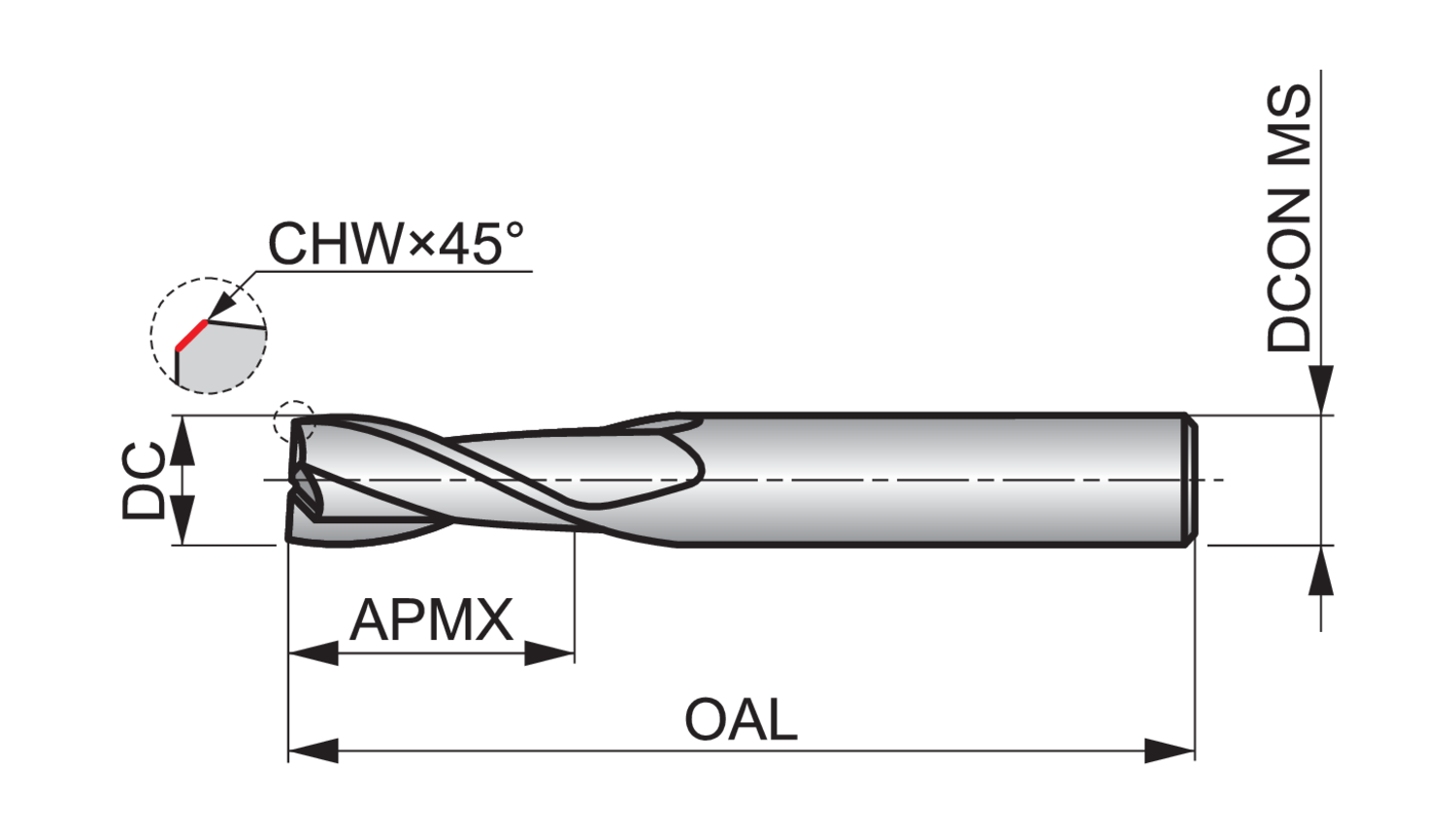

Regular length end mill with 2 flutes, diameter 8mm with 19mm length of cut, 63mm overall length and 0.13mm 45° chamfered corner edges, according to DORMER standard with a 8mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for slot milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys
