S90414.0 End Mill
Regular price
£67.36
inc. VAT
Available to order in. - Please call first if urgent
Out of Stock at SBL Services Swindon
Available to order. Collection times may vary.
Specific timeframe will be provided after ordering.
Product details
- SKU S90414.0
- Type End Mill
- Material HM
- Application Steel and Cast Steel, Cast Iron, Non-Ferrous Metal, and High-Temperature Alloy

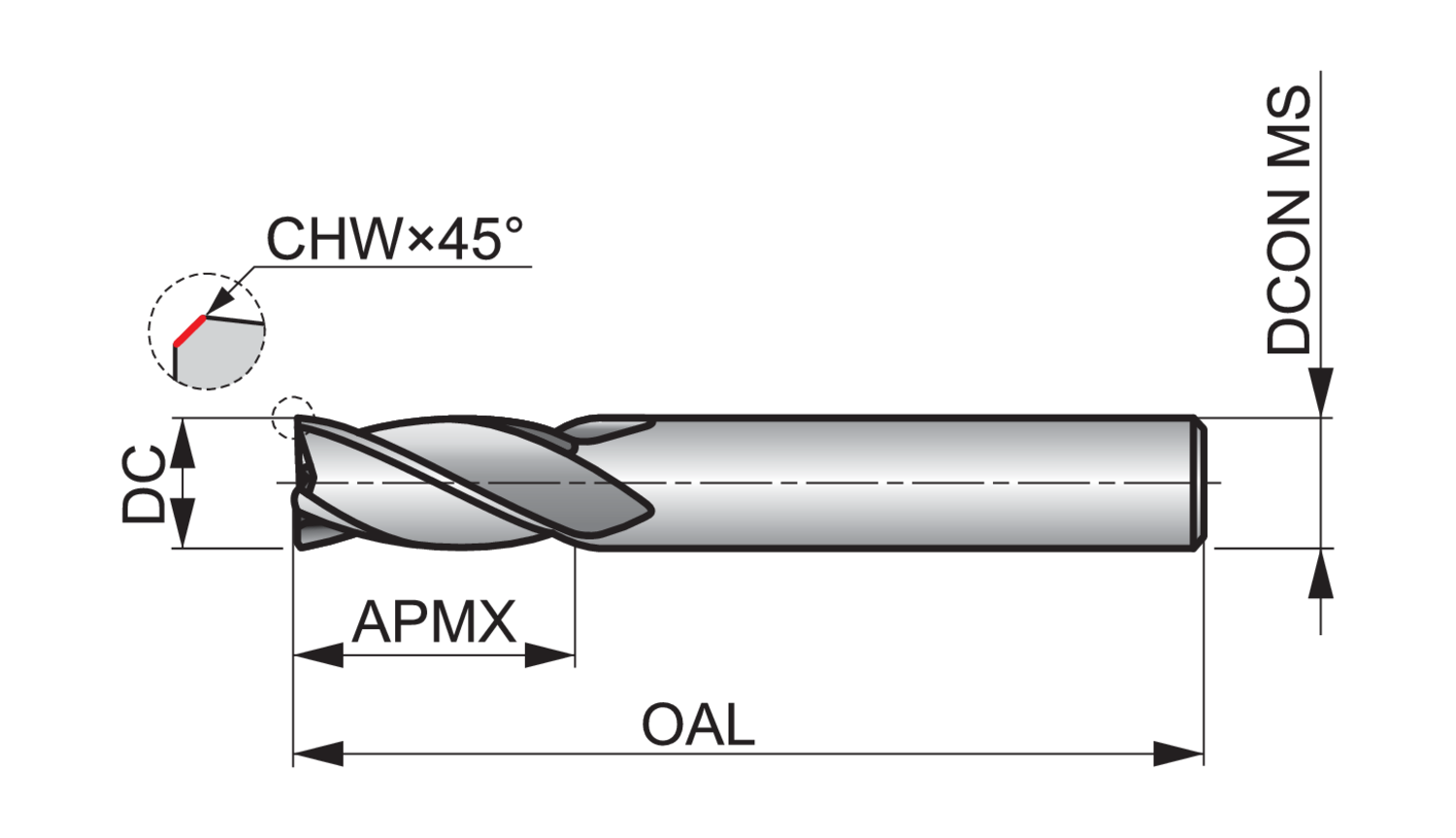

- Cutting Diameter (DC) 14mm
- Overall Length (OAL) 83mm
- Shank Type Cylindrical shank DIN 6535 HA

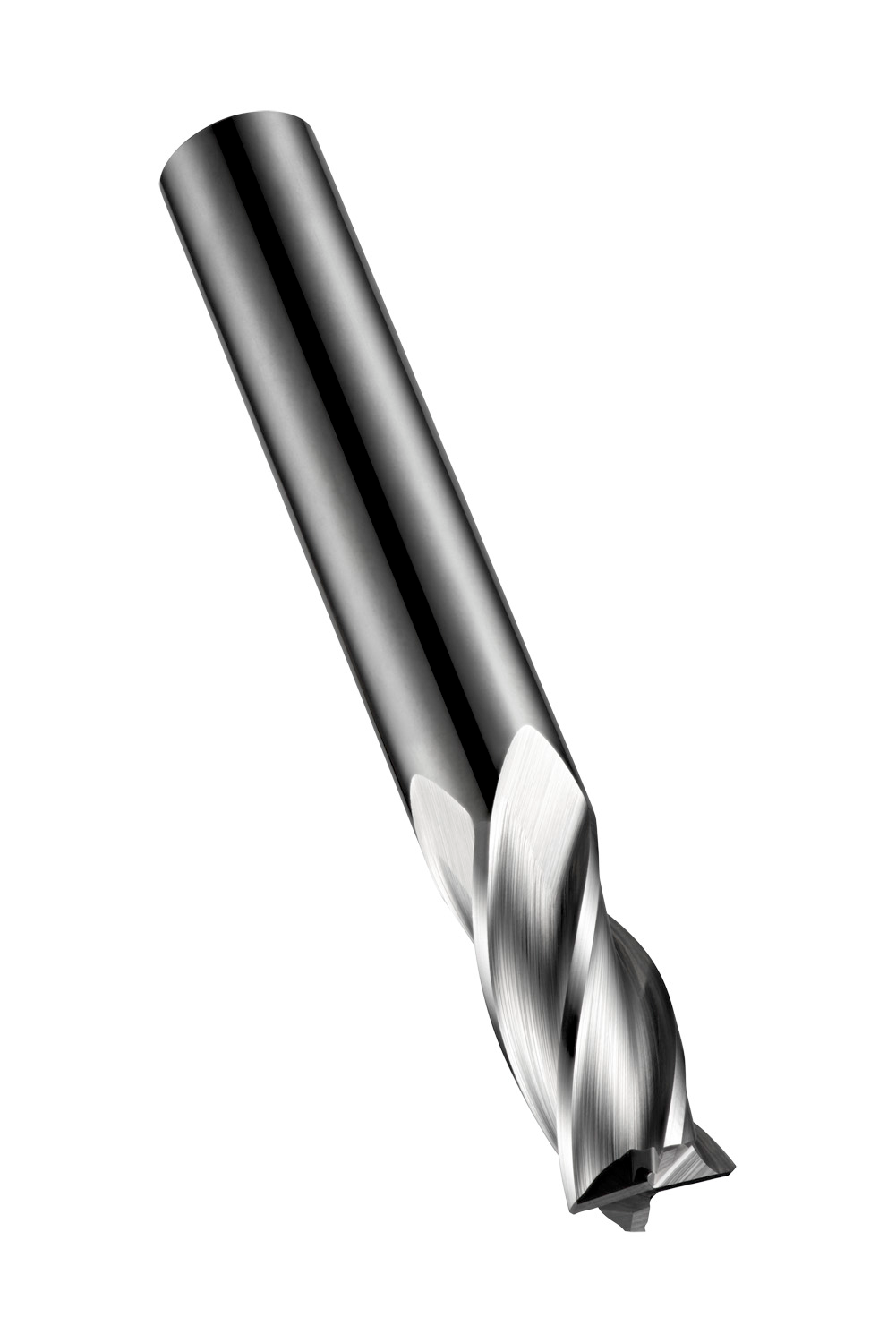

Regular length end mill with 4 flutes, diameter 14mm with 30mm length of cut, 83mm overall length and 0.2mm 45° chamfered corner edges, according to DORMER standard with a 14mm plain shank, solid carbide with bright finish, 30° helix and 12° rake angle for shoulder milling in free machining, plain carbon and alloy steel, malleable, ductile and compacted graphite cast-iron and copper or copper alloys
