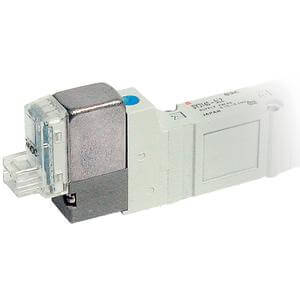

SY5120-6YO-01F-Q 5 Port Solenoid Valve
Regular price
£68.30
inc. VAT
Next Working Day Delivery Available - Order before 3pm Mon-Fri
Next Working Day Delivery Available - Order before 3pm Mon-Fri
Couldn't load pickup availability
Product details
- SKU SY5120-6YO-01F-Q-SMC
- Type Directional Control Valve
- Gender F
SMC SY SERIES: SY5000, 5 Port Solenoid Valve, All Types
Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.
Type of actuation: 1 (2 Position Single)
Manifold Type: 20 (Body Ported Plug-in Integrated)
Pilot Type: Internal Pilot
Coil Specifications: Standard
Rated voltage: 6 (12VDC)
Electrical Entry: YO [DIN Terminal w/o Connector (DIN 43650C)]
Lead Wire Length: None
Light/Surge Voltage Suppressor: Without light/surge voltage suppressor
Manual Override: Non-locking Push Style
A, B Port Size: 01 (Body Ported 1/8)
Thread: F (G)
Option: None
CE Marked: Q (CE Marked)
